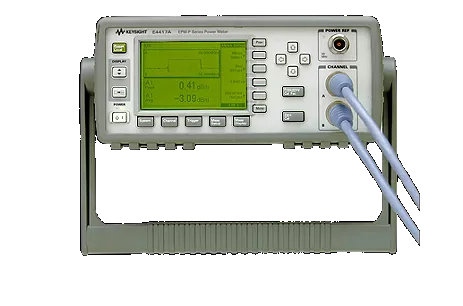

KEYSIGHT E4417A 双通道功率计 (5 MHz, 20 Msamples/s)

Specifications

• 5 MHz video bandwidth

• 20 Msamples/s continuous sampling rate

Measurement type

• Peak, average, peak-to-average ratio power measurements

• Time-gated and free-run measurement modes

• Includes predefined configurations for GSM, EDGE, NADC, iDEN,

Bluetooth®

• IS-95 CDMA, W-CDMA and cdma2000®

Calibration

• Calibration and correction factors in EEPROM (E-Series sensors and N8480 Series)

Remote programmability

• SCPI standard interface commands

• GPIB, RS-232/422 interfaces

System-ready software

• EPM-P analyzer software backward-compatibility

• Code-compatible with EPM Series power meters

Details

Brochure


Technical overview


Datasheet
