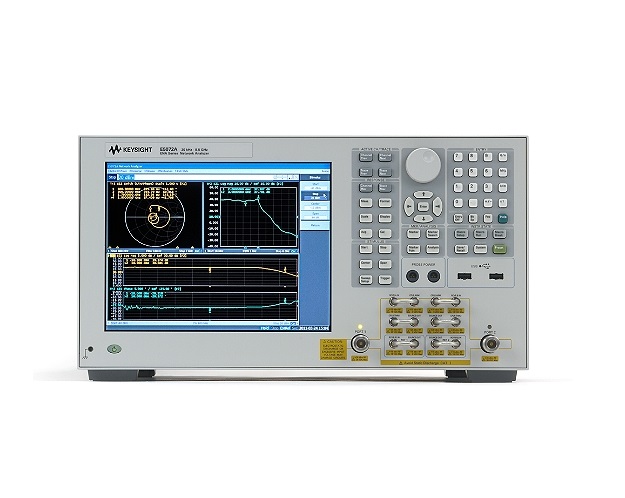

KEYSIGHT E5072A-285 ENA向量网路分析仪 (30kHz~8.5GHz)

• Frequency: 30 kHz to 8.5 GHz

• Number of ports: 2-port

• Configurable test set (Direct receiver access): Yes (standard)

• Trace noise:

 0.0015 dBrms (spec, 10 kHz IFBW)

 0.0005 dBrms (typical, 10 kHz IFBW)

• Max output power:

+16 dBm (spec)

+20 dBm (SPD) 2

• Power range:

–85 to +16 dBm (spec)

–109 to +20 dBm (settable)

• Dynamic range (IFBW = 10 Hz): > 123 dB

• Extended dynamic range (IFBW = 10 Hz): 151 dB (SPD)

• IFBW: 10 Hz to 500 kHz

• Measurement speed: 23 ms (IFBW = 500 kHz)

• Bias tee current:

300 mA (spec)

1 A (damage level)

• Receiver leveling: Yes

• Software options: Time domain analysis, FOM, Wireless power transfer analysis

• Upgradability: Yes (among all options)
