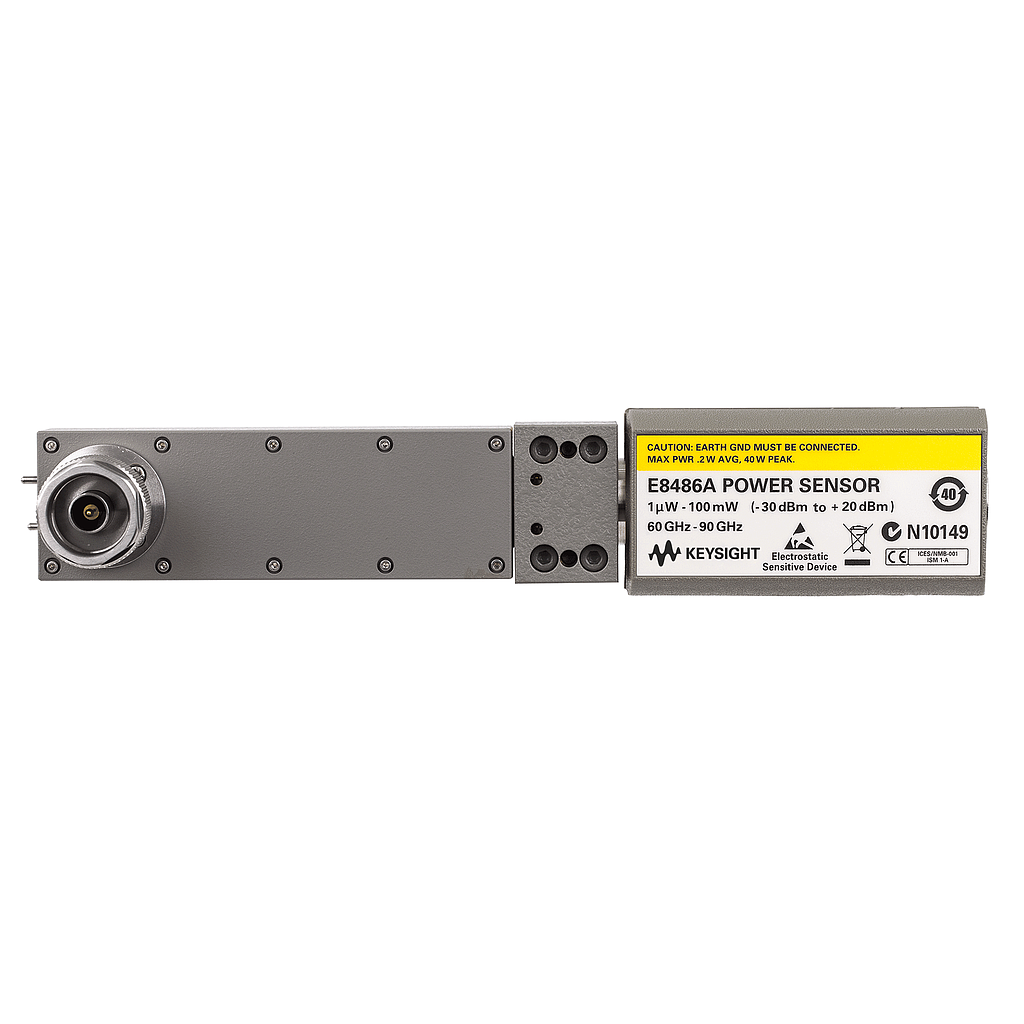

KEYSIGHT E8486A-200 E波段波导功率传感器 (60 ~ 90GHz, -60 ~ +20dBm)
制造商: KEYSIGHT Model: E8486A-200 - 报价要求
- 报价要求
Price (exclude VAT) 76,898,250 VND Price (include VAT) 84,588,075 VND
Power range: 1 nW to 100 mW (-60 to +20 dBm)
Frequency range: 60 to 90 GHz
Maximum SWR: < 1.28
Maximum SWR at 50 MHz: < 1.077
Maximum Calibration Factor Relative Uncertainty
60 GHz to 64 GHz: 6.4%
> 64 GHz to 68 GHz: 5.7%
> 68 GHz to 74 GHz: 6.1%
> 74 GHz to 79 GHz: 7.3%
> 79 GHz to 90 GHz: 6.9%
Connector type:
50 MHz calibration port: Type N (male), 50 Ω nominal impedance
Waveguide flange: UG-387/U Flange, EIA WR-12
