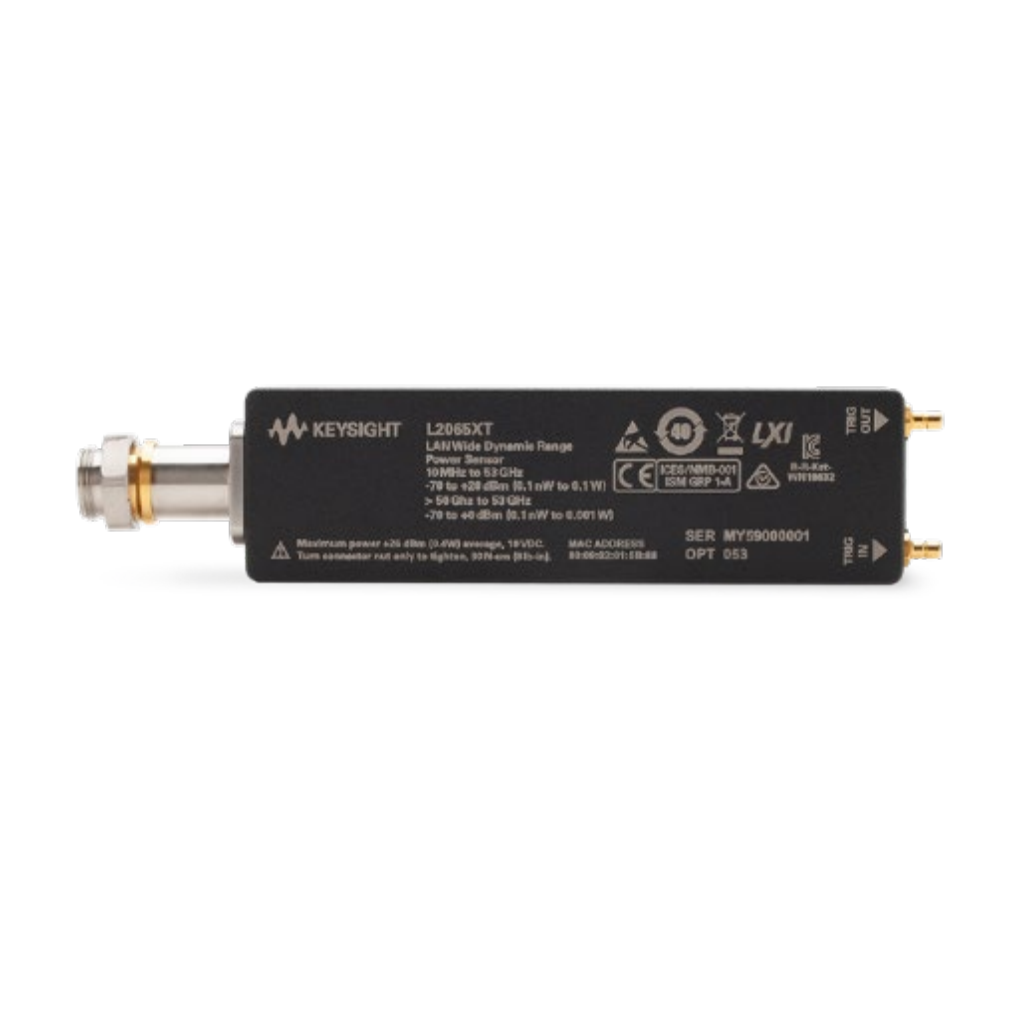

KEYSIGHT L2065XT 回收功率传感器 (LAN type, −70 ~ +20 dBm, thermal vaccum)

Frequency Range: 10 MHz to 53 GHz (Option 053)

Power range:

−70 to +20 dBm (10 MHz to 50 GHz)

−70 to 0 dBm (> 50 GHz to 53 GHz) (Option 053)

Connector type: 2.4 mm (male)

Maximum power

Average: +26 dBm

Peak: +29 dBm for < 10 µs duration

Voltage: ≤ 10 VDC

Zero and calibration: Internal zero and calibration supported

Maximum sampling rate: 20 Msamples/second, continuous sampling

Single shot bandwidth: 5 MHz

Minimum pulse width: 250 ns

Rise/fall time: ≤ 100 ns

Maximum capture length:

1 s (decimated)

6.5 ms (at full sampling rate)

Maximum pulse repetition rate: 2 MHz (based on 10 samples/period)
