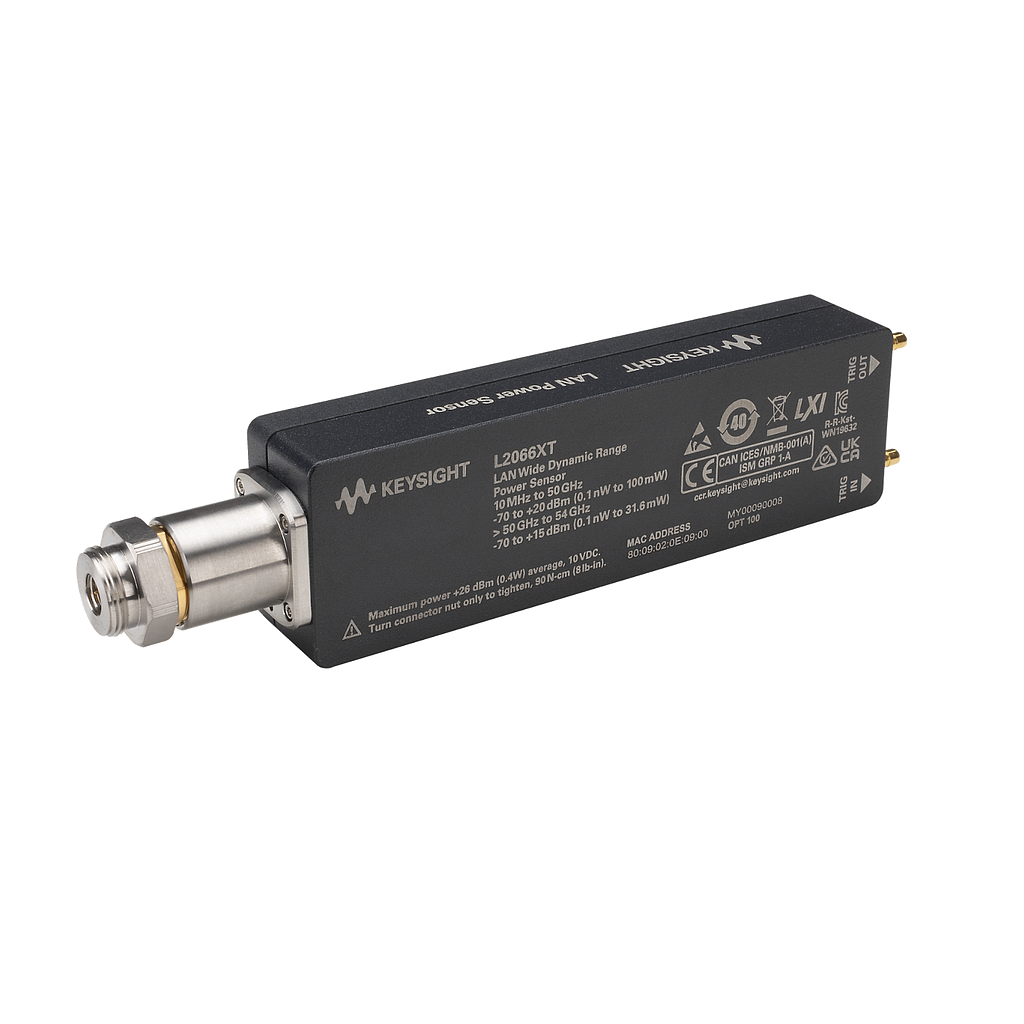

KEYSIGHT L2066XT 热真空功率传感器 (10 MHz ~ 54 GHz)

Frequency Range: 10 MHz to 54 GHz

Power range:

−70 to +20 dBm (10 MHz to 50 GHz)

−70 to +15 dBm (> 50 GHz to 54 GHz)

Connector type: 1.85 mm (male)

Maximum power

Average: +26 dBm

Peak: +29 dBm for < 10 µs duration

Voltage: ≤ 10 VDC

Zero and calibration: Internal zero and calibration supported

Maximum sampling rate: 20 Msamples/second continuous sampling

Power linearity at 5 dB step: Average mode: < 1.0%
