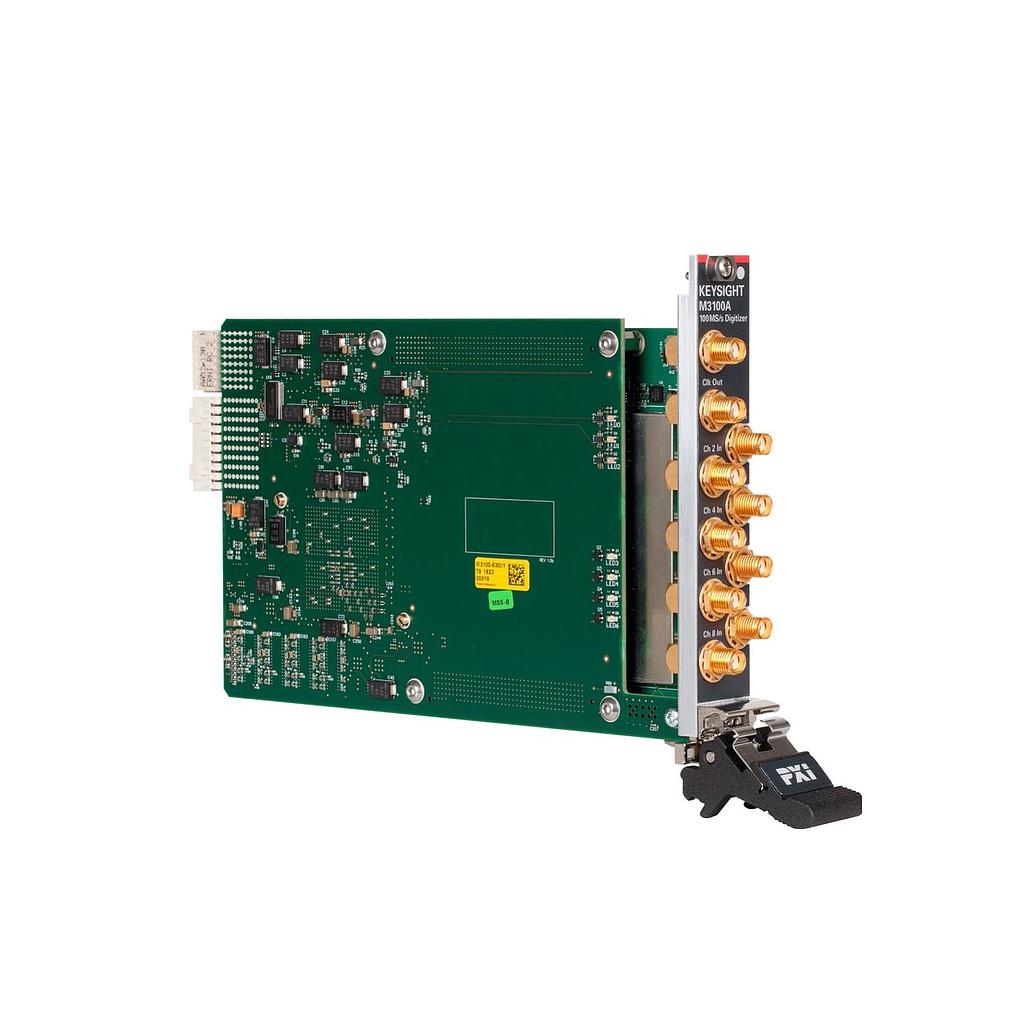

KEYSIGHT M3100A PXIe 数字化仪 (100 MSa/s, 14 bit, 100 MHz)

Channels: 4, 8

Sampling rate: 100 MSa/s

Voltage resolution: 14 Bits

Max input frequency: 100 MHz

Real-time BW: 50 MHz

RAM memory: 16 to 2048 MBytes

Operating temperature range: 0 to +55°C (10,000 feet)

Non-operating temperature range: -40 to +70 °C (up to 15,000 feet)

Max operative altitude: 2000 m (10,000 feet)

Operating humidity range (%RH): 10 to 95% at 40°C

Non-operating humidity range (%RH): 5 to 95%

Detail

See the datasheet to choose suitable options

Datasheet
