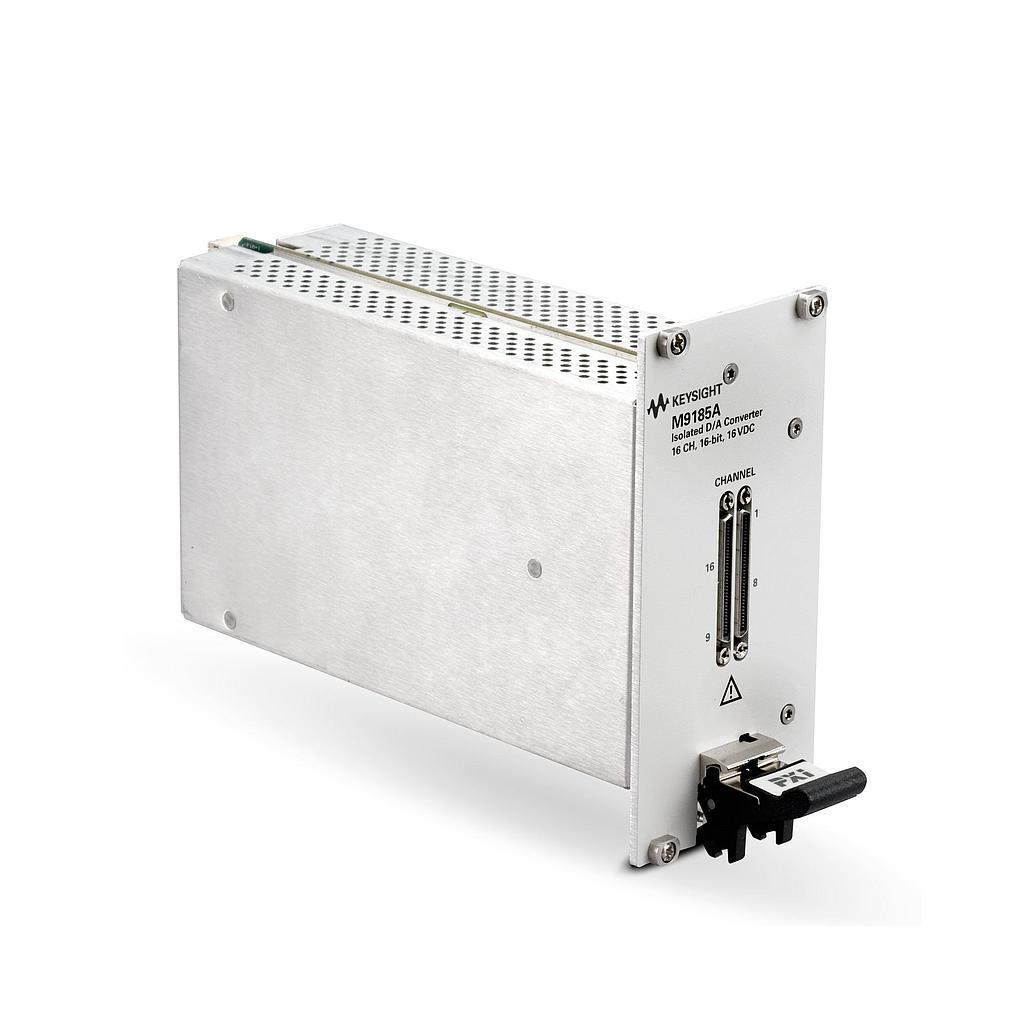

KEYSIGHT M9185A 隔离D/A转换器 (8/16 CH)

Number of Channels: 8 or 16 channels

Resolution: 16-bit

Settling Time: 500 µs (typical)

DCV

        Range: ± 16 V up to 10 mA

        Resolution: 16-bit = 500 µV

        Accuracy: ± (0.05% + 3.0 mV)

        Ripple and Noise: < 80 mVpk-pk (typical)

DCA

        Range: ± 20 mA

        Resolution: 16-bit = 630 nA

        Accuracy: ± (0.09% + 5.0 µA)

        Ripple and Noise: < 2 µArms (typical)

Input Impedance: < 2 µArms (typical)

Output Impedance: 50 Ω typical

Operating temperature: 0 to 55° C

Storage temperature: –40 °C to 70° C

Relative humidity: 80%, 0° C to 40° C (non condensing)

Dimensions: 40.30 mm x 128.40 mm × 215.00 mm (8-Ch); 60.50 mm x 128.40 mm × 215.00 mm (16-Ch)

Weight: 0.47 kg (8-Ch); 0.60 kg (16-Ch)

Warm-up time: 30 minutes


Detail

See the datasheet to choose suitable options

Datasheet
