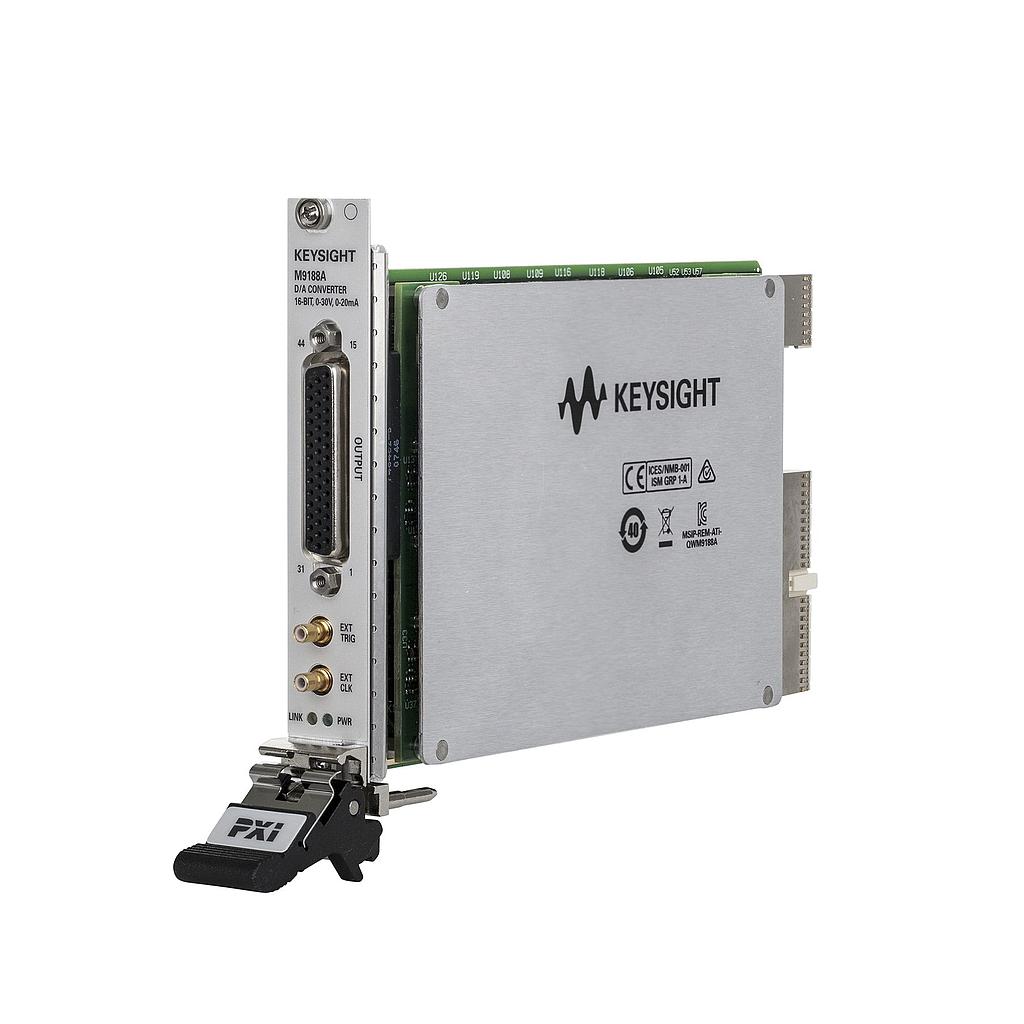

KEYSIGHT M9188A 动态数模转换器 (16 CH, 16-Bit, 30 V/20 mA)

Number of channels: 16 channels (4 banks, 4-channel each)

Resolution: 16-bit

Update rate: 500 kSa/s max per channel

Voltage output range: 0-30 V

Voltage output accuracy: ± (0.1% + 5 mV) (23 ± 5 °C, 1 year)

Current output range: 0-20 mA

Current output accuracy: ±(0.15% + 10 µA) (23 ± 5 °C, 1 year)

On-board memory: 1 MSa per channel

Storage temperature: -40 °C - +70 °C

Operating temperature: 0 °C – 55 °C

Weight: 0.6 kg (1.32 lbs.)

Dimension (W X D X H): Fit within one PXI-H or PXI-1 slot

Detail

See the datasheet to choose suitable options

Datasheet
