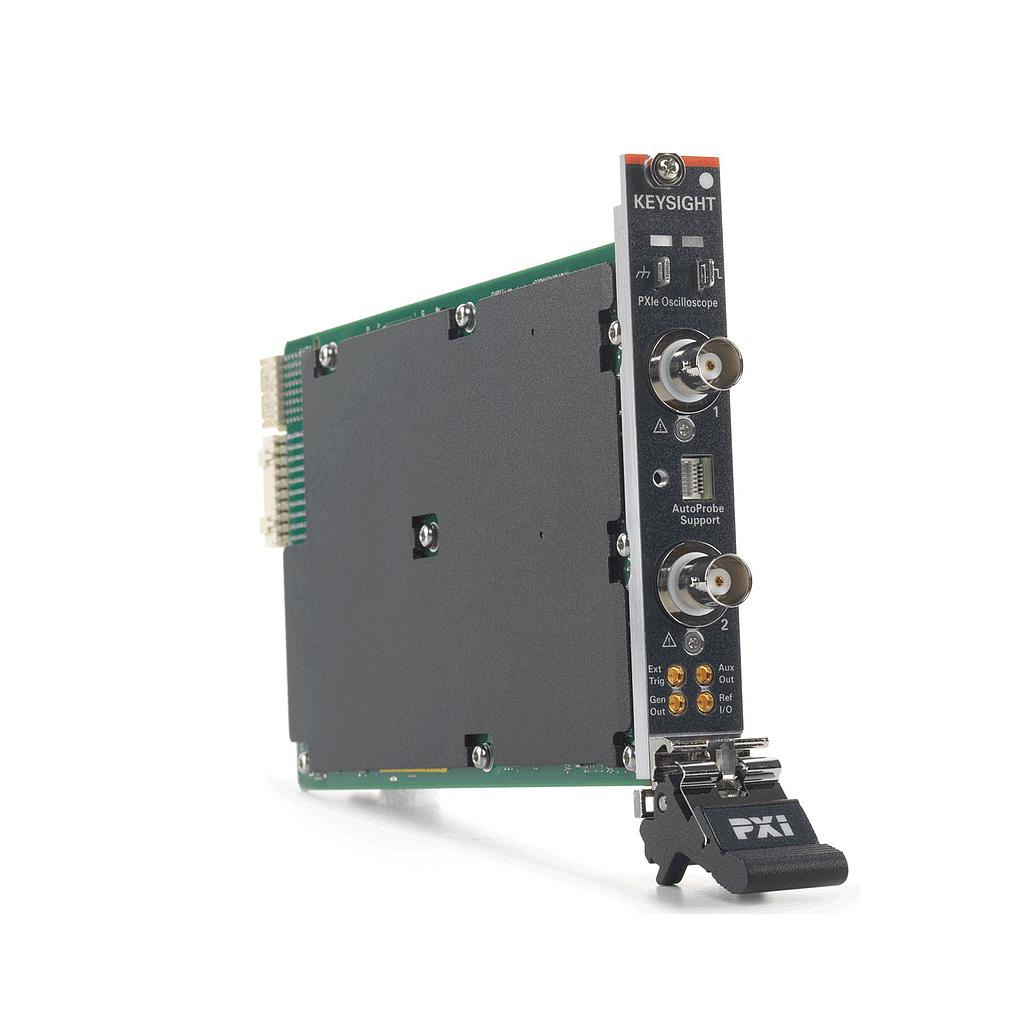

KEYSIGHT M9242A InfiniiVision PXIe 示波器模块 (500 MHz)

Input channels: 2

Bandwidth (–3 dB): 500 MHz

Maximum sample rate: 5 GSa/s one channel, 2.5 GSa/s two channels

Waveform update rate: ≥ 1,000,000 waveforms/sec

Max Memory Depth: 4 Mpts

ADC Bit: 8 bits

Operating temperature: 0 to 55 °C

Storage temperature: –40 to 70 °C

Dimensions (W x D x H): 20 mm x 210 mm x 135 mm

Weight: 38 kg

Operating systems: Windows 10, Windows 8.1, Windows 7 SP1

Detail

See the datasheet to choose suitable options

Datasheet
