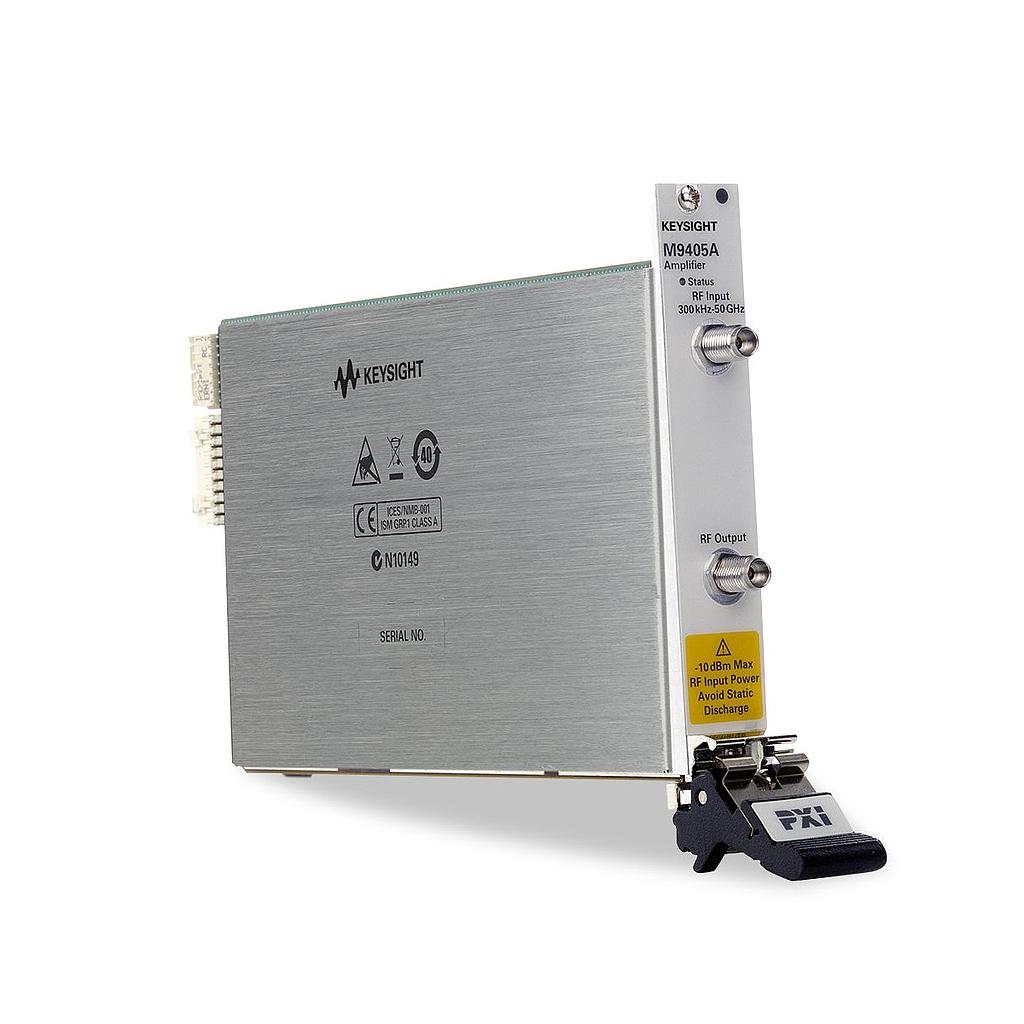

KEYSIGHT M9405A PXIe RF 放大器

Option F26

        Frequency range: 300 kHz to 26.5 GHz

        Gain: ≥ +27 dB

        Connector type: 3.5 mm

        Return loss ≥ 10 dB

        Noise Figure: 7 dB

Option F50

        Frequency range: 300 kHz to 50 GHz

        Gain: ≥ +24 dB

        Connector type: 2.4 mm

        Return loss ≥ 5 dB

        Noise Figure: 9 dB

Power consumption: 3W

Maximum input power: -10 dBm

Impedance: 50 Ohms

Detail

See the datasheet to choose suitable options

Datasheet
