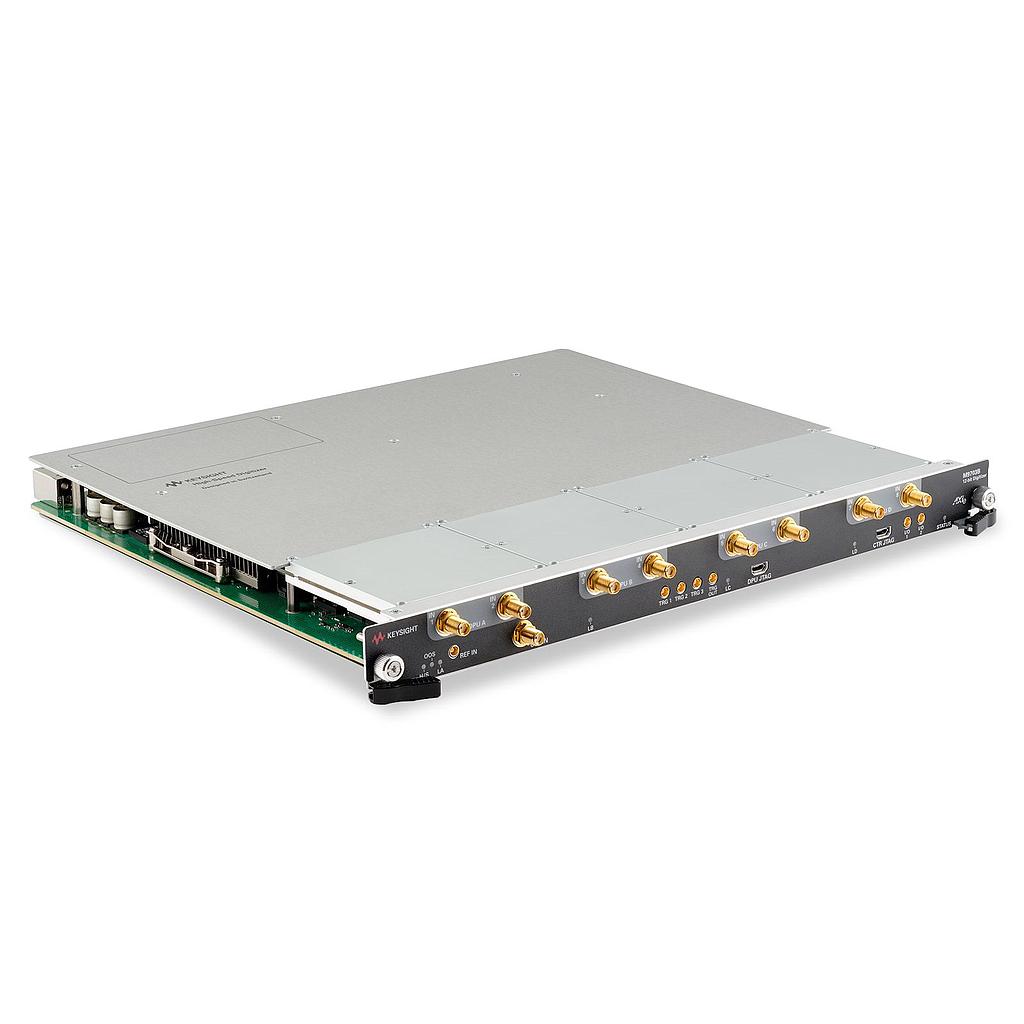

KEYSIGHT M9703B AXIe 高速数字化仪/多通道数字接收机 (12-bit, 3.2 GS/s, 8-ch, Xử lí tín hiệu FPGA)

ADC resolution: 12-bit

Number of channels: 8 (without -INT option), 8 or 4 (with -INT option)

Impedance: 50 Ω ±2 %

sampling rate: Up to 3.2 GS/s

Input frequency range: DC up to 2 GHz

Memory: Up to 16 GB (1 GSamples/ch)

Full scale ranges (FSR): 1 V and 2 V (3.98 dBm and 10 dBm)

Operating temperature range: 0 to +45°C

Non-operating temperature range: -40 to +70°C

Operating systems: Windows 10, Windows 8.1, Windows 7 SP1, Linux Kernel 2.6, Debian 7.0, CentOS 6


Detail

See the datasheet to choose suitable options

Datasheet
