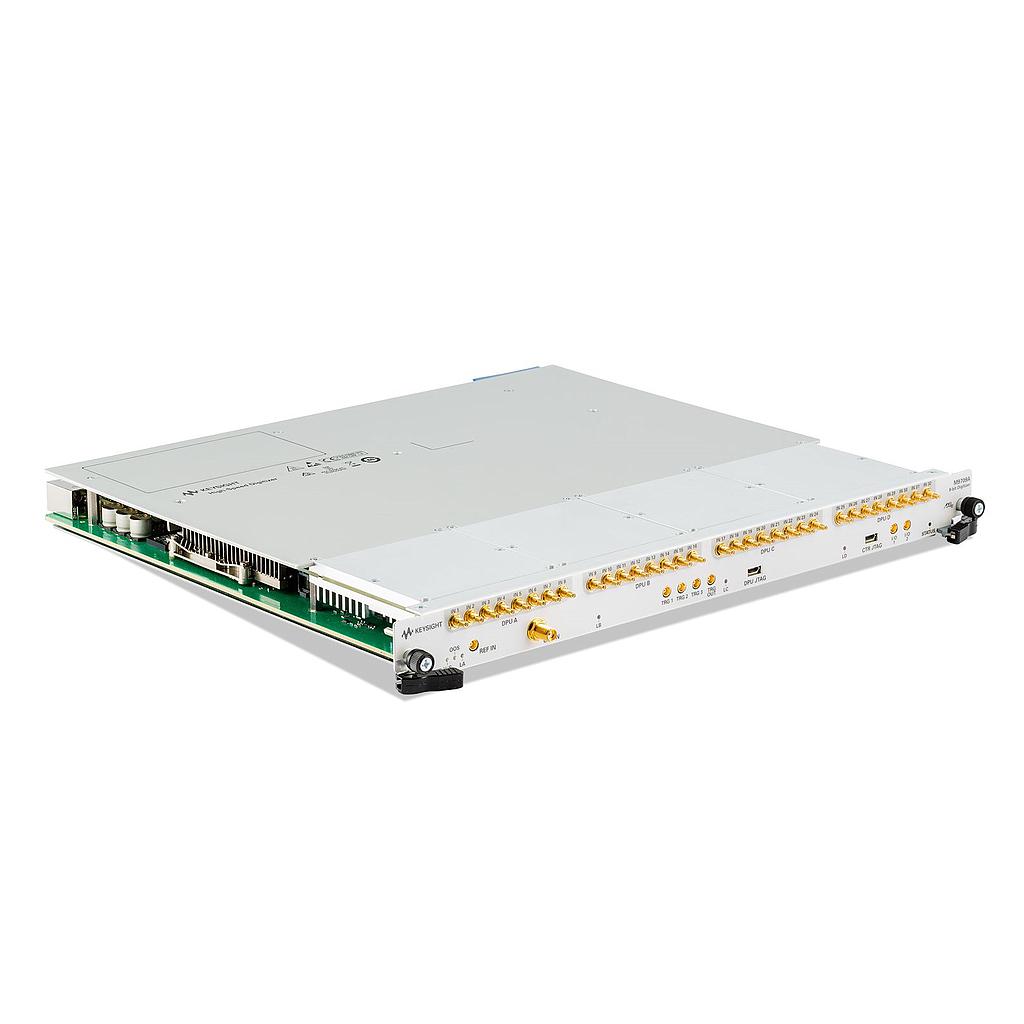

KEYSIGHT M9709A AXIe 高速数字化仪/DAQ (8-bit, 1 GS/s, 32-ch)

ADC resolution: 8-bit

Number of channels: 32

Impedance: 50 Ω ± 2 %

Maximum input voltage ± 5 V

Sampling rate: 1 GS/s

Input frequency range: DC up to 500 MHz (with -F05 option)

Memory: Up to 16 GB (512 MSamples/ch)

Full scale ranges (FSR): 250 mV, 500 mV, 1 V, 2.5 V, and 5 V

Operating temperature range: 0 to +40°C

Non-operating temperature range: -40 to +70°C

Size: 30 mm W x 322.2 mm H x 280 mm D

Weight: 3.3 kg (7.27 lbs)

Operating system: Windows and Linux


Detail

See the datasheet to choose suitable options

Datasheet
