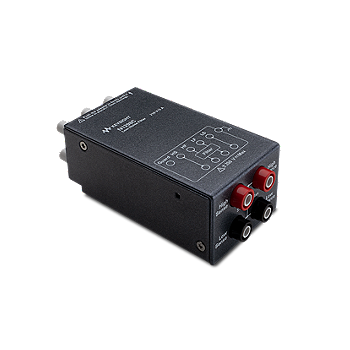

KEYSIGHT N1298C 低噪声滤波器 (for B2961B/B2962B, 210 V / 3 A)

Maximum output range: 210 V/3 A (DC)

Output connector: Banana, 2-wire/4-wire

Output/residual resistance: 0.3 Ω nominal (2-wire)

Small signal bandwidth: 2 kHz nominal (1 A and 3 A ranges), 800 Hz nominal (100 mA range)

Source noise

Voltage

0.1 to 10 Hz: Same as voltage specification

10 to 20 MHz: 350 μVrms (20 V/1.5 A range, 50 Ω load)

Current

0.1 to 10 Hz: Same as current specification

10 to 1 MHz: 450 μArms (20 V/1.5 A range, 0.67 Ω load)

Maximum capacitive load: 1 mF

Dimensions: 41.5 mm H x 58.2 mm W x 127.5 mm D

Weight: 0.25 kg
