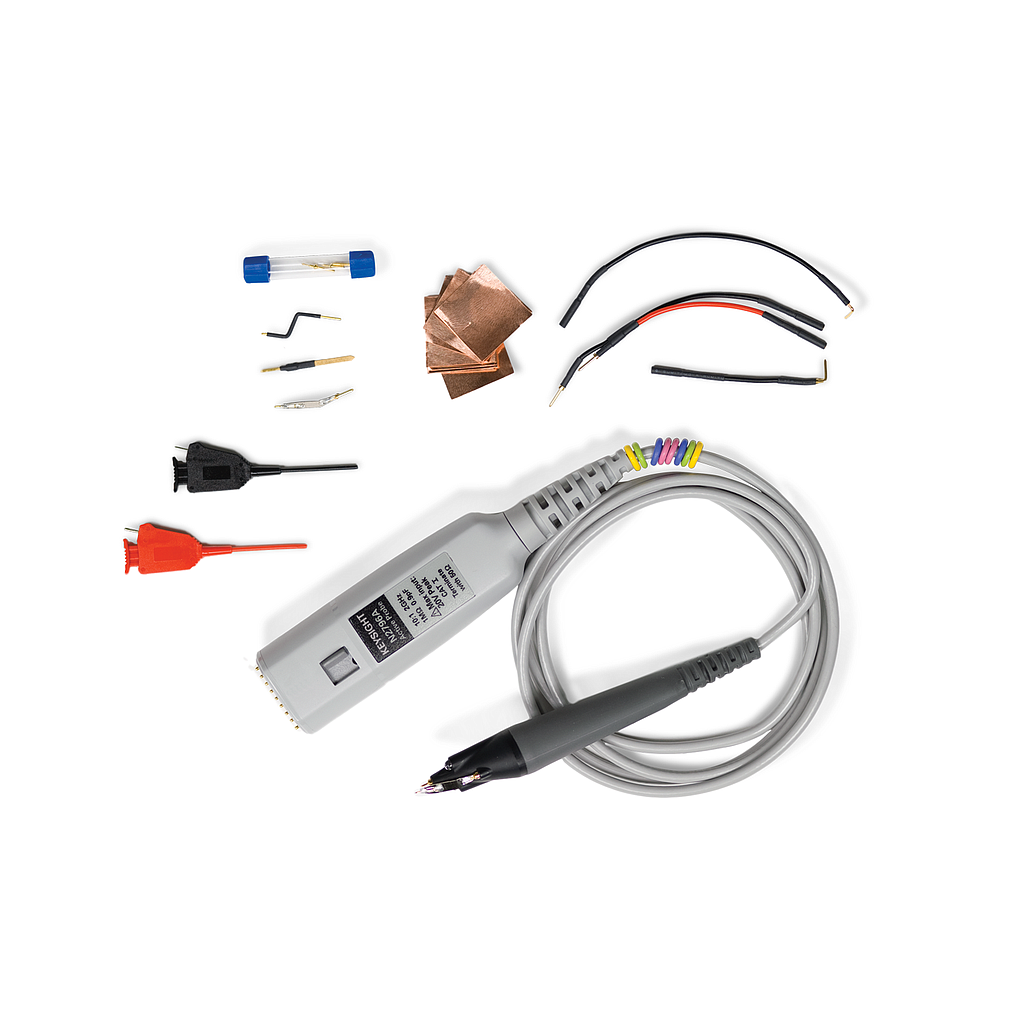

KEYSIGHT N2795A 主动探头 (1GHz, 10:1, 1MΩ)

Compatible oscilloscopes: Keysight InfiniiVision 3000/3000T X-, 4000 X-, 6000 X-, 5000, 6000 (except 6000 100 MHz), 7000 and Infiniium 9000, S-Series and 90000A Series.

Bandwidth (–3 dB): 1 GHz

Attenuation ratio (at DC): 10:1 ± 0.5%

Input R: 1 MΩ +0 %, –2.5 %

Input C: 1 pF

Non-destructive max input voltage: –20 V to +20 V

Cable Length: 1.3 m


Details

Datasheet


Manual
