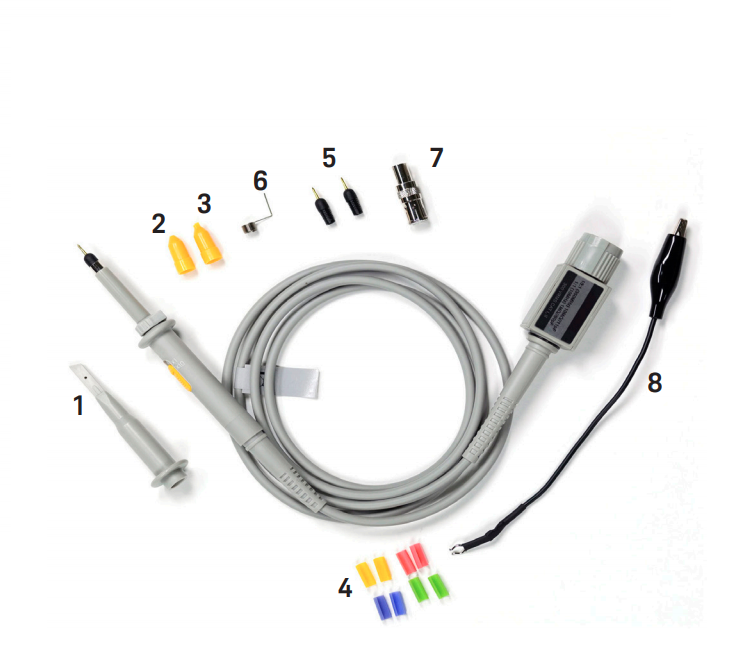

KEYSIGHT N2890L 被动探棒

Bandwidth (–3 dB): 500 MHz

Rise time (10% - 90%): 700 psec

Attenuation ratio: 10:1

Input resistance (when terminated into 1 MΩ): 10 MΩ

Maximum input voltage: 300 V RMS (or > 400Vpk) CAT I and CAT II

Scope compensation range: Pre-tuned to Keysight Infiniium 9000 Series

Probe ID: Yes

Cable length: 1.3 m

Safety: Conformance to IEC-61010-031:2002

Operating temperature: 0 to 50 ºC, 80% RH

Storage temperature: 0 to 50 ºC, 80% RH
