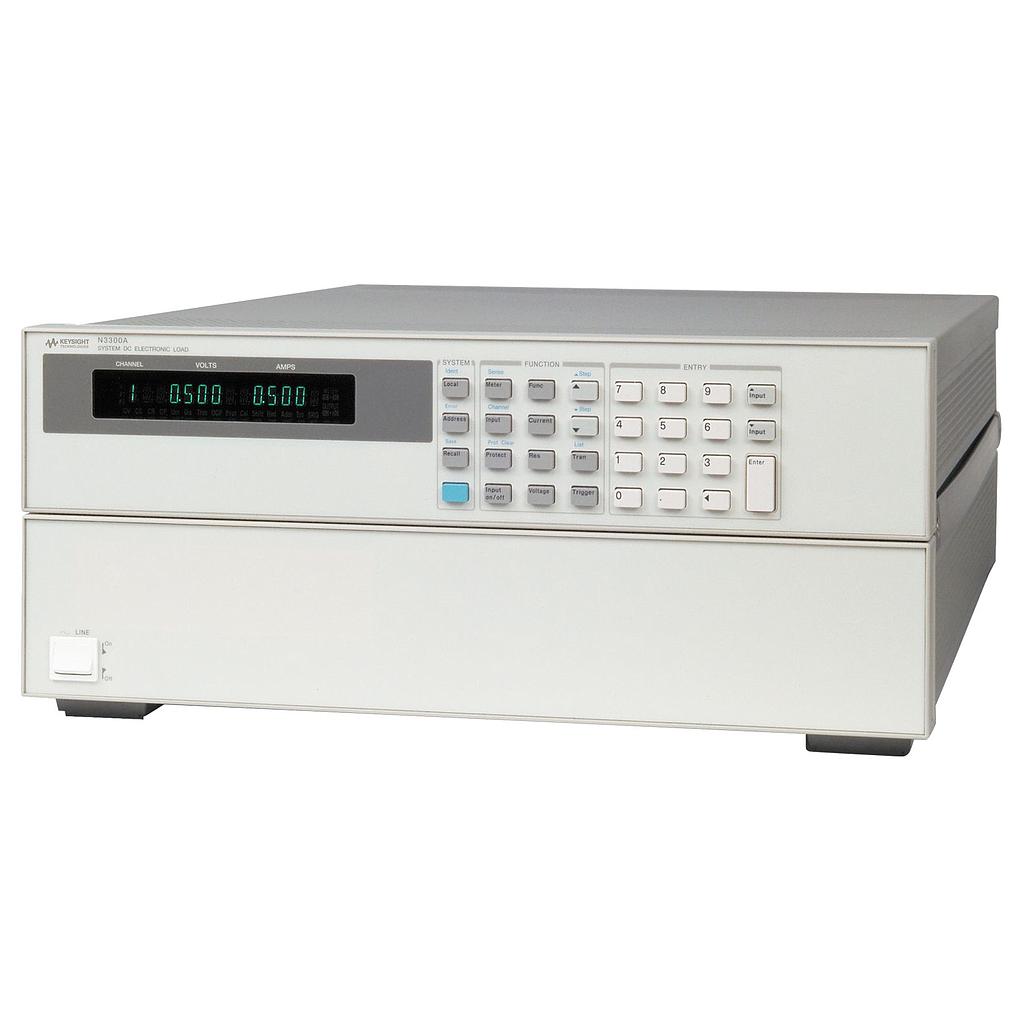

KEYSIGHT N3305A 电子负载模组 (0–60A; 0–150V; 500W)

• Input ratings: 0–60A; 0–150V; 500W

• CC mode:

Low range/Accuracy: 6A / 0.1%+7.5mA

High range/Accuracy: 60A / 0.1%+15mA

• CV mode:

Low range/Accuracy: 15V / 0.1%+10mV

High range/Accuracy: 150V / 0.1%+20mV

• CR mode: 0.033–5Ω at range > 10% of current rating

• Ripple and noise (20 Hz–10 MHz): 4mA/40mA (rms/peak to peak); 10 mV rms

• Interface: GPIB

• Net weight: 4.6 kg (10 lb)

Datasheet
