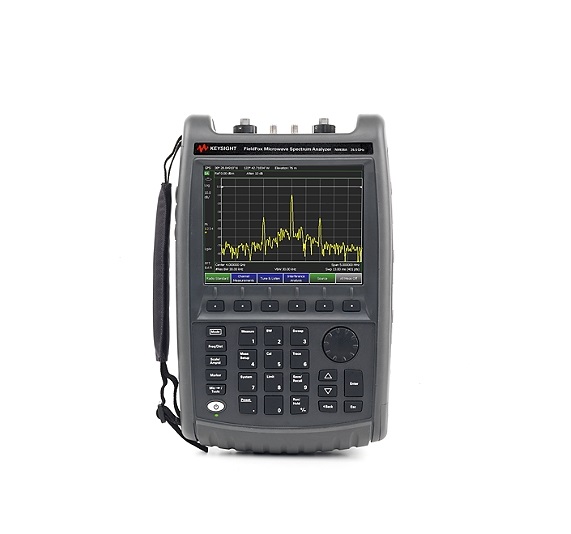

KEYSIGHT N9938A 手持式微波频谱分析仪 (100kHz~26.5GHz)

• Frequency: 100 kHz to 26.5 GHz

• Test port connectors: Type-N (f)

• Spectrum analyzer: Spectrum, channel power, adjacent power, occupied bandwidth, analog demodulation, tune and listen

• Frequency span: Resolution: 1 Hz

• Frequency reference: -10 to 55°C

• Phase noise: Stability, SSB phase noise at 1 GHz

• Resolution bandwidth (RBW), range (-3 dB bandwidth):

Zero span: 10 Hz to 5 MHz: 1, 3, 10 sequence

Non-zero span: 1 Hz to 5 MHz: 1, 1.5, 2, 3, 5, 7.5, 10 sequence

• Video bandwidth (VBW): 1 Hz to 5 MHz in 1, 1.5, 2, 3, 5, 7.5, 10 sequence

• Displayed average noise level (DANL): RMS detection, log averaging, reference level of -20 dBm, normalized to 1 Hz RBW

• Third order intermodulation distortion (TOI): Two -20 dBm signals, 100 kHz spacing at input mixer, – 10 to 55°C

• Real-time spectrum analyzer (RTSA):

Maximum real-time bandwidth: 10 MHz

Resolution bandwidth: 1 Hz to 500 kHz

• Analysis bandwidth: Maximum bandwidth 10 MHz

• Dimension H x W x D: 292 x 188 x 72 mm (11.5" x 7.4" x 2.8")

• Battery: Lithium ion, 10.8 V, 4.6 A-h, 3.5 hours (typical)

• Weight: 3.0 kg or 6.6 lb. including battery

• What's Included:

AC/DC adapter

Localized power cord

Battery –rechargeable Li Ion

LAN cable

Soft carrying case with backpack and shoulder strap

Quick Reference Guide
