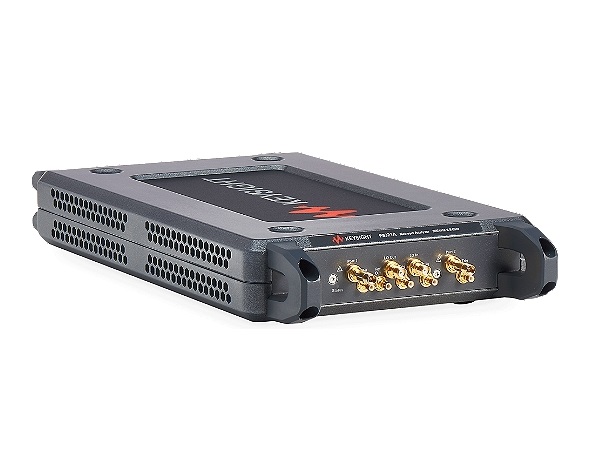

KEYSIGHT P9371A 向量网路分析仪 (300kHz~6.5GHz; 2 ports)

• Frequency: 300 kHz to 6.5 GHz

• Number of Built-In Ports: 2

• Dynamic range: 122dB at > 4.5 to 6.5 GHz

• Noise Floor: –108 dB > 4.5 to 6.5 GHz

• Maximum Output Port Power (dBm): +10dbm at > 4.5 to 6.5 GHz

• Phase noise: –90 dBc/Hz at 2 MHz to 2.5 GHz

• Low trace noise: < 0.003 dBrms (1 kHz IFBW)

• High temperature stability: 0.005 dB/degree C up to 4.5 GHz

• PC System Requirement: Win7/10, USB 3.0

• Dimensions / Weight: 176x48x333mm, 1.90kg

• Electrical Power: DC, 15 V, 42 W

• Connector Type: 3.5 mm female, 50 ohm

• Accessories: Main unit, Instruction.
