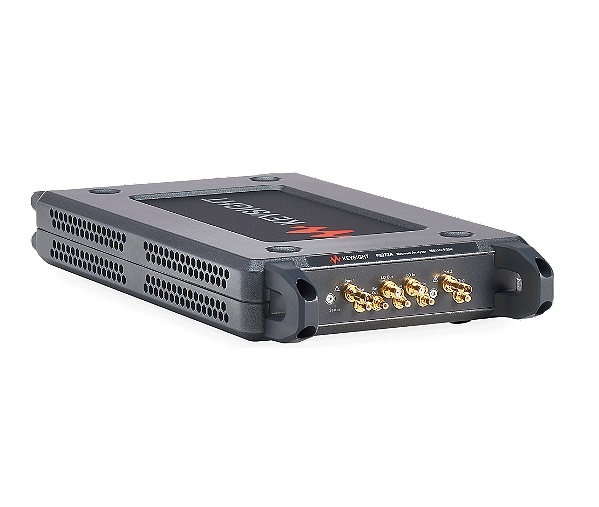

KEYSIGHT P9372A 向量网路分析仪 (300kHz~9GHz; 2 ports)

• Frequency: 300 kHz to 9 GHz

• Number of Built-In Ports: 2

• Dynamic range: 121dB at > 6.5 to 9 GHz

• Noise Floor: –108 dB > 6.5 to 9 GHz

• Maximum Output Port Power (dBm): +9dbm at > 6.5 to 9 GHz

• Phase noise: –84 dBc/Hz at 2.5 MHz to 5 GHz

• High temperature stability: 0.015 dB/degree C at 6.5 GHz to 9 GHz

• PC System Requirement: Win7/10, USB 3.0

• Dimensions / Weight: 176x48x333mm, 1.90kg

• Electrical Power: DC, 15 V, 42 W

• Connector Type: 3.5 mm female, 50 ohm

• Accessories: Main unit, Instruction.
