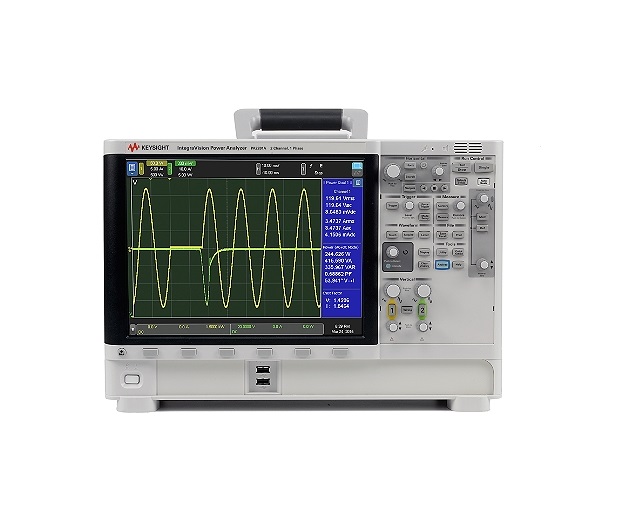

KEYSIGHT PA2203A AC电源分析仪 (2.5 MHz; 4 Channels)

• Basic accuracy (50/60 Hz): 0.05% of reading

• Best power accuracy (50/60 Hz): 0.1% of reading

• Power Channels (Voltage and Current): 4 Channels

• Voltage Measurement Bandwidth (-3 dB): 2.5 MHz (-3 dB)

• Current Measurement Bandwidth (2 A or 50 A Input): 100 kHz (-3 dB)

• Current Measurement Bandwidth (External Input): 2.5 MHz (-3 dB)

• Display: 12.1-inch capacitive multi-touch/gesture enabled

• Resolution: 800 (H) x 600 (V) pixel format (screen area)

• Connectivity: USB 2.0

• Power line consumption: Maximum 180 VA

• Power voltage range: 100-240 V, 50/60 Hz ±10%; 100-120 V, 50/60/400 Hz; auto-ranging

• Dimensions: 426 mm W x 308 mm H x 272.8 mm D (16.8 in W x 12.1 in H x 10.7 in D)

• Weight: Net: 12.3 kg (27.2 lbs), Shipping: 13.7 kg (30.3 lbs)


Detail

Datasheet

`
