Automatic Fixture Removal (AFR) software is used to remove the effects of the fixture used to test coaxial connectors, which is required to make accurate measurements on the device.
> Easiest way to remove fixture effects from non-coaxial device measurements
> Extract fixture S-parameters from 2x thru or one-port measurements

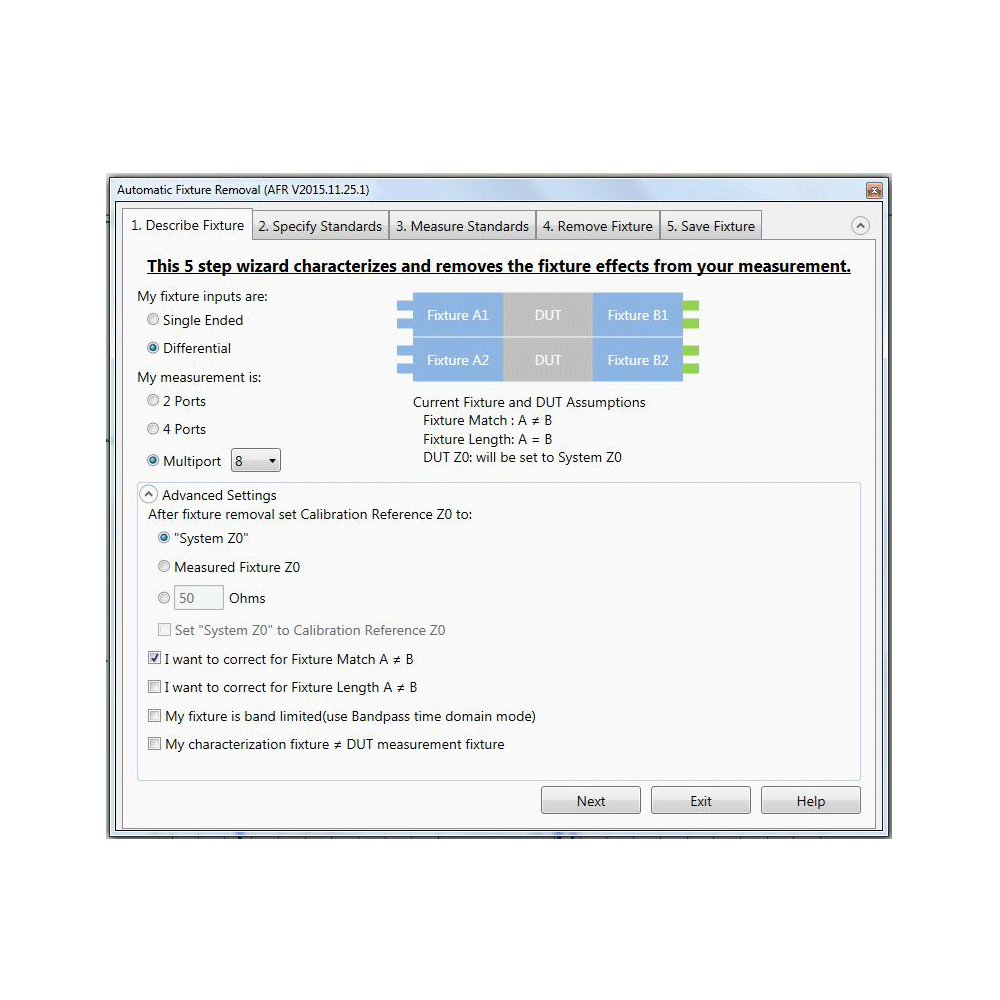

> Step-by-step wizard to characterize the fixture and remove it from the measurements
> De-embedded files can be saved in a variety of formats for later use
> Compatible with all USB vector network analyzer
Many devices do not have coaxial connectors and are put in fixtures in order to measure them in a coaxial environment. Accurately removing the effects of the fixture is required to get a good measurement of the device under test (DUT). This software adds a powerful application wizard to guide you through characterizing a fixture and removing it from the measurement.
The S97007B software is compatible with the Keysight Streamline Series Vector Network Analyzers.
