KEYSIGHT S97082B 标量校准混频器/转换器测量软件

The S97082B scalar mixer / converter measurements enable the highest accuracy of scalar conversion-loss / gain measurements with easy setup and calibration.

- Intuitive user interface for mixer / converter measurements-Frequency offset sweep

- Calibration of match-corrected power meters

- Controls external signal generators and power meters

- Compatible with all USB vector network analyzers

With easy setup and calibration, the S97082B scalar mixer / converter measurement provides the highest accuracy for scalar conversion loss / gain measurements by combining on-port calibration and power meter calibration to eliminate mismatch errors. ..

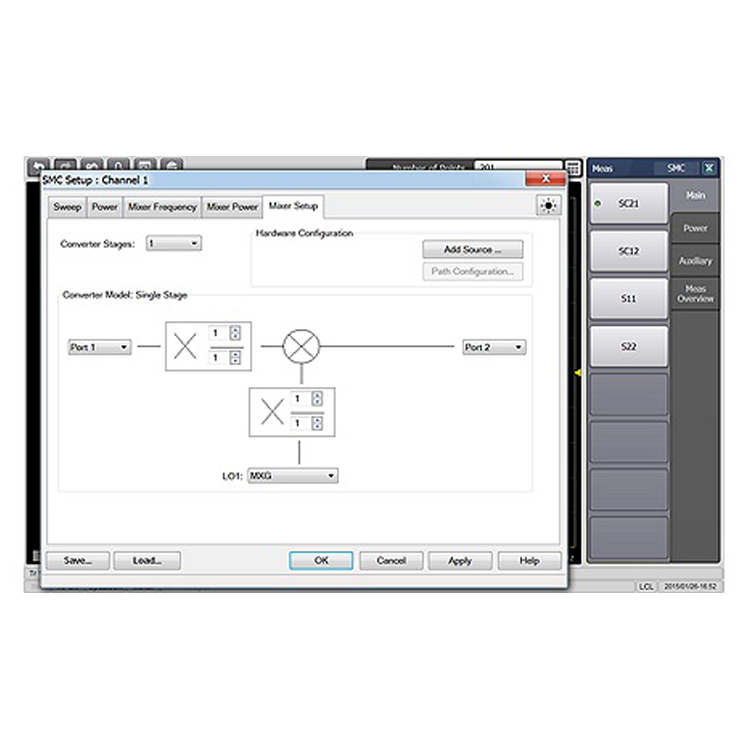

The S97082B provides an intuitive and easy-to-use user interface for setting up mixer and converter measurements with single or dual conversion stages.

You can control the analyzer's built-in source and the external signal generator used as the LO signal.

The S97082B software is compatible with the Keysight Streamline series of vector network analyzers.
