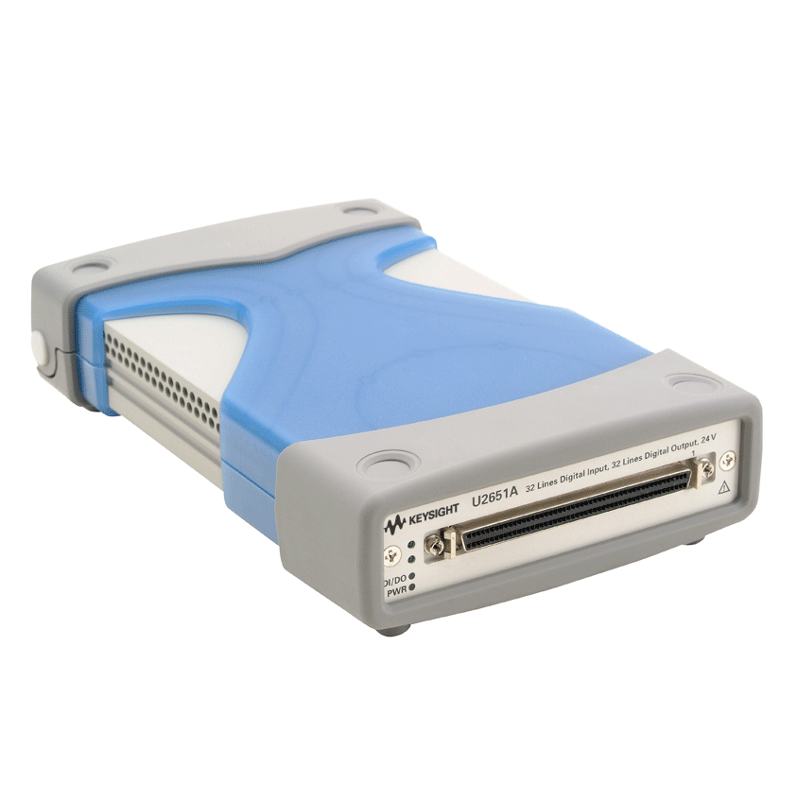

KEYSIGHT U2651A USB 模块数字 I/O (32 输入, 32 输出)

Digital input

Number of isolated bits: 32-bit

Maximum input voltage range: 24V

Digital logic levels

        High: 10 to 24 V

        Low: 0 to 2 V

Input resistance: 24 kΩ at 0.75 W

Input current (maximum): 1.5 mA per bit

Maximum transient voltage: 1250 V

Digital output

Number of isolated bits: 32-bit

External supply voltage range: 5 V to 35 V

Maximum transient voltage: 1250 V

Storage temperature: –20 to +70 °C

Operating temperature: 0 to +55 °C

Connector type: 100-pin SCSI-II connector

Dimensions (W × D × H): 120.00 × 182.40 × 44.00 mm

Remote interface: Hi-Speed USB 2.0

Detail

See the datasheet to choose suitable options

Datasheet
