| 制造商: | KEYSIGHT |

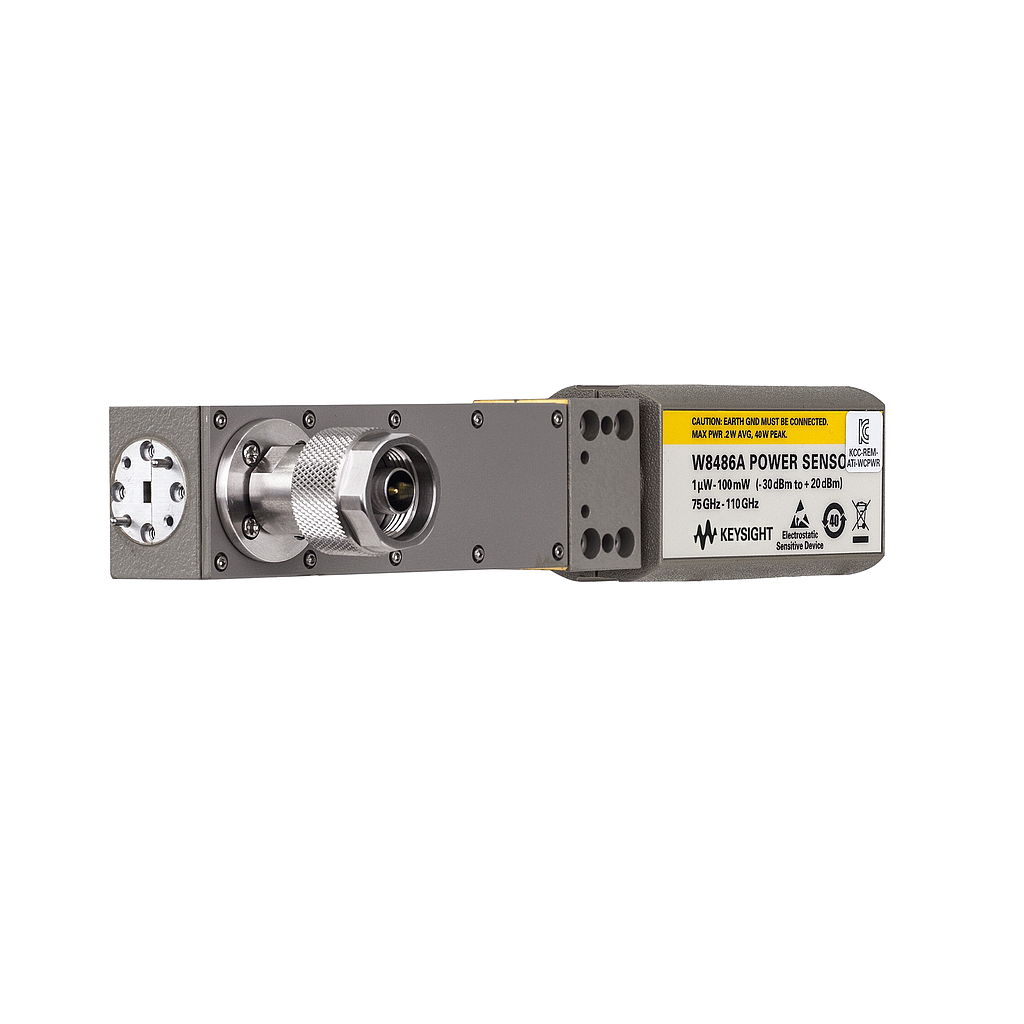

| Model: | W8486A |
Power range: -30 to +20 dBm
Frequency range: 75 to 110 GHz
Maximum SWR: < 1.08
Maximum SWR: at 50 MHz < 1.076
Maximum Calibration Factor Relative Uncertainty
75 GHz to 79 GHz: 7.86%
> 79 GHz to 94 GHz: 7.24%
> 94 GHz to 103 GHz: 6.98%
> 103 GHz to 108 GHz: 7.24%
> 108 GHz to 110 GHz: 7.77%
Connector type: Waveguide flange: UG-387/U
