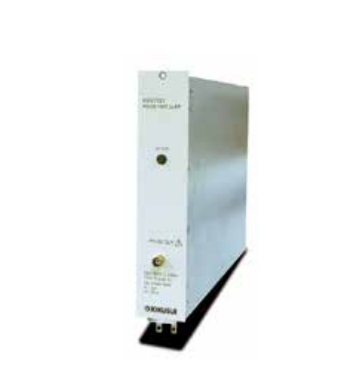

KIKUSUI KES7711A EMC测试仪 (±150 V)

Pulse unit 1: Plug-in type

Peak voltage (Us): ±20 V ~ ±150 V, in steps of 0.1 V

Output impedance (Ri): 2 Ω, 4 Ω, 10 Ω

Rise time (tr): 1 μs (+0 μs, -0.5 μs)

Pulse width (td):

-CDN output :

2000 μs ±400 μs at No Load, 1500 μs ±300 μs at 10 Ω Load

1000 μs ±200 μs at 4 Ω Load, 600 μs ±120 μs at 2 Ω Load

- PLUSEOUT output : 200 μs ~ 500 μs at No Load (fixed value)

Repetition interval (t1) :

- CDN output : 0.5 s ~ 99 s, in steps of 0.1 s,

- PLUSEOUT output : 0.2 s ~ 99 s, in steps of 0.1 s

DC cut time (t2):

- CDN output : 2 ms ~ 200 ms, in steps of 0.1 ms

- PLUSEOUT output : 0 ms

Surge delay time (t3): Less than 100 μs

CDN capacity: –

Driving power: Supplied from the main frame

Power consumption: –

Dimensions: 50(1.96”)W × 260(10.23”)H × 330(12.99”)D mm

Weight: Approx. 2.7 kg(5.95lbs)
