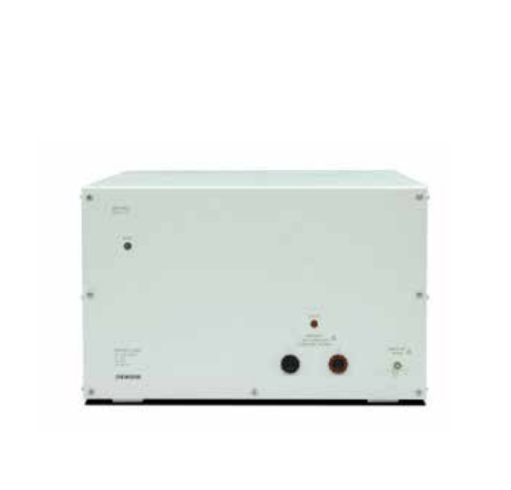

KIKUSUI KES7751 EMC Tester (60VDC max/100A max)

Pulse module 5a/5b: External-connect type

Peak voltage (Us): +40.0V ~ +200.0V(0.1 V step), +40.0V ~ +150.0V (Output impedance (Ri)=0.5W)

Output impedance (Ri): 0.5Ω, 1Ω, 2Ω, 4Ω, 6Ω, 8Ω

Rise time (tr): 10 ms (+0ms, -5ms)

Pulse width (td): Choose from 40ms, 50ms, 100ms, 150ms, 200ms, 250ms, 300ms, 350ms, 400ms, 450ms, 500ms, 550ms, 600ms, 650ms, 700ms

Repetition interval (t1): 30.0 s ~ 99.0 s (0.1 s step) *Ua+Us≧100V : 60.0 s ~ 99.0 s (0.1 s step)

CDN capacity: 60VDC max/100A max

Driving power: Supplied from the main frame

Power consumption: -

Dimensions: 440(17.32”)W×280(11.02”)H×610(24.01”)D mm

Weight: Approx. 35 kg(77.16lbs)

ISO21848 Overvoltages mode

Peak voltage(Umax): +40.0V ~ +120.0V(0.1 V step)

Output impedance (Ri): 0.5Ω, 1Ω, 2Ω, 4Ω, 6Ω, 8Ω

Rise time (tr): 10ms

Control time(ts): 400ms

Fall time (tr): 20ms
