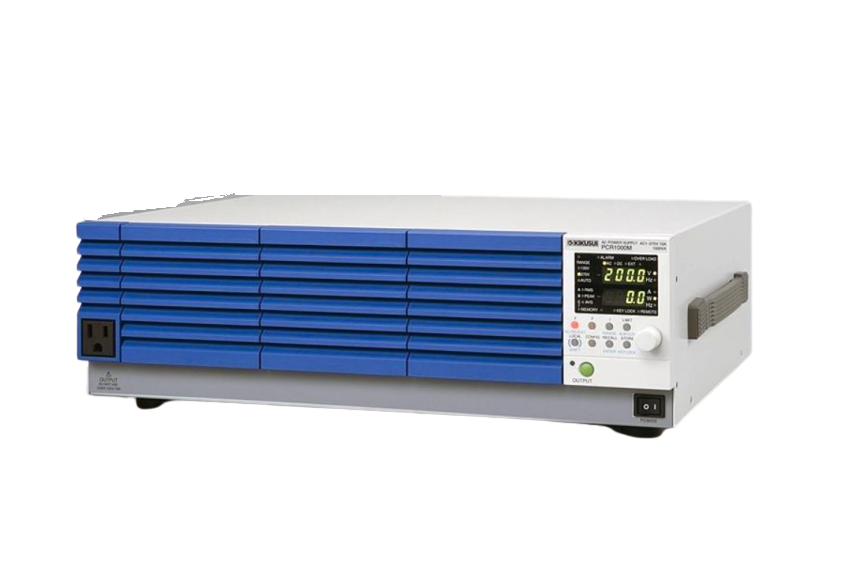

KIKUSUI PCR1000M 小型交流电源 (10A/5A, 1kVA)

- Nominal input rating: 100 V to 120 V / 200 V to 240 V, 50 Hz / 60 Hz, single phase

- Output rating for AC mode:

Rated voltage range: 1 V to135 V / 2 V to 270 V

Input voltage range: 0 V to 137.5 V / 0 V to 275 V

Voltage setting accuracy: ± (1 % of set + 0.6 V/1.2 V)

Output phase: Single phase

Maximum current: 10 A / 5 A

Power capacity: 1000 VA

Frequency setting range: 40 Hz to 500 Hz

- Output rating for DC mode:

Rated voltage range: 1.4 V to 190 V / 2.8 V to 380 V

Maximum current: 8 A / 4 A

Power capacity: 8400 W

- Output voltage stability:

Ripple noise: 0.7 Vrms / 1.4 Vrms

Output voltage response time: 150µs

Measured value display: Voltage, Current, Power

- Interfaces: RS232C, USB (option), GPIB (option)

- Accessories: Power cord, Ferrite core, Cable tie, CD-ROM
