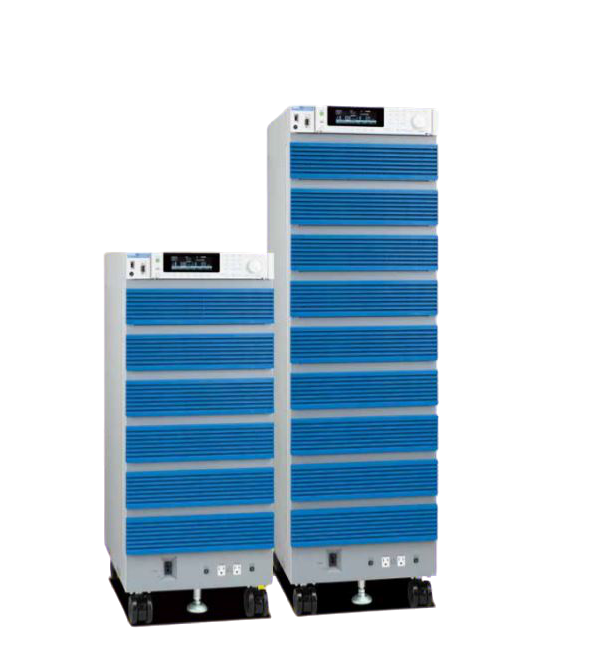

KIKUSUI PCR18000LE2 多路输出交流安定化电源 (18 kVA/ 12 kVA)

- Input:

Voltage & Current (max):

170 V ~ 250 V, 111A (3-phase, 3-wire, 200V)

324 V to 440 V, 59A (3-phase, 4-wire, 400V)

Frequency: 47Hz to 63Hz

- AC mode output ratings (AC rms)

Voltage: 1 V to 150 V / 2 V to 300 V

Voltage setting range: 0 V to 152.5 V / 0 V to 305.0 V

Voltage setting accuracy: ± (0.3 % of set + 0.6 V)

Max. current (Single phase, poly phase, L range, H range): 180 A, 90 A · 60 A, 30 A

Power capacity (Single phase, Three-phase 4-wire, Single phase 3-wire): 18 kVA · 12 kVA

Frequency: 1 Hz to 999.9 Hz

DC mode output ratings:

Voltage: ±1.4 V to ±212 V / ±2.8 V to ±424 V

Voltage setting range: -215.0 V to +215.5 V / -431.0 V to +431.0 V

Voltage setting accuracy: ±(0.05 % of set + 0.05/0.1 V)

Max. current (Single phase, Single phase 3-wire and Three-phase, L range, H range): 126 A, 63 A · 42 A, 21 A

Power capacity (Single phase, Single phase 3-wire, Three-phase): 12.6 kW · 8.4 kW

- Output Voltage Stability:

Line regulation: Within ±0.1 %

Load regulation: ±0.3 V

Output voltage response speed: 30 µs

- Interfaces: RS232C, USB (Option) , LAN (Option) , GPIB (Option)

- Measurement: A, V, W, F

- Accessories: Setup guide, Quick Reference, Safety information, CD-ROM (User's manual)
