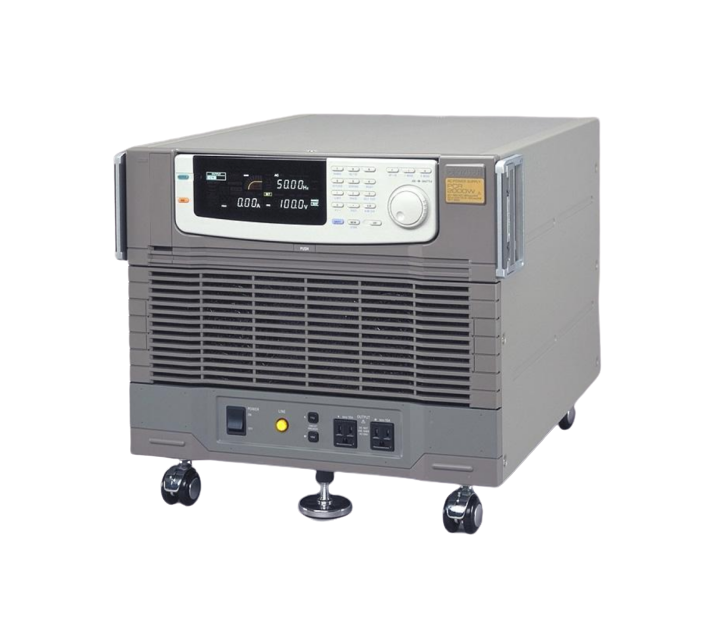

KIKUSUI PCR2000W 高效率交流电源 (20A/10A, 2kVA)

- Input rating: 85 to 132 V / 170 to 250 V, single-phase, 47 to 63Hz

- Output rating for AC mode:

Rated voltage range: 1 to 150 V / 2 to 300 V

Output phase: Single phase

Maximum current: 20 A / 10 A

Power capacity: 2kVA

Frequency setting range: 1 to 500.0Hz

- Output rating for DC mode:

Rated voltage range: 1.4 to 212 V / 2.8 to 424 V

Maximum current: 10 A / 5 A

Power capacity: 1 kVA

- Output voltage stability: Within ±5 × 10-5, Setting accuracy: within ±1 × 10-4

Output voltage response time: 60µs

Measured value display: Voltage, Current, Power

- Interfaces: RS232C (option), GPIB (option)

- Accessories: 3 pcs. of a single-core cable;

Wire diameter: (conductor cross-section area/length) 14mm2/5m
