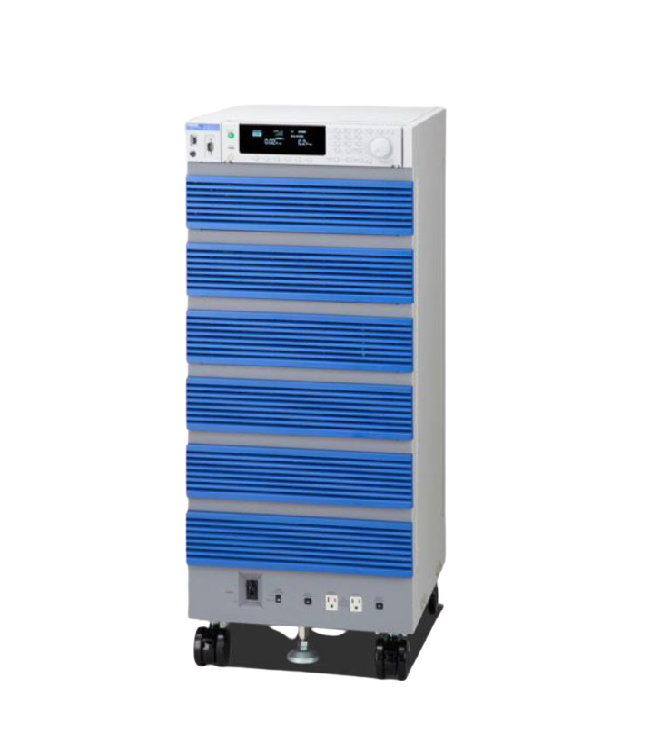

KIKUSUI PCR6000LE 变频电源可编程交流电源 (6 kVA)
制造商: KIKUSUI Model: PCR6000LE 保障: 12 Month - 报价要求
- 联系
- Input:
Voltage & Current:
170 V to 250 V, 64A (1-phase, 2-wire)
170 V ~ 250 V, 38A (3-phase, 3-wire)
324 V ~ 440 V, 21A (3-phase, 4-wire)
Frequency: 47Hz to 63Hz
- AC mode output ratings (AC rms)
Voltage: 1 V to 150 V / 2 V to 300 V
Voltage setting range: 0 V to 152.5 V / 0 V to 305.0 V
Voltage setting accuracy: ± (0.3 % of set + 0.6 V)
Max. current: 60 A, 30 A
Power capacity: 6 kVA
Frequency: 1 Hz to 999.9 Hz
DC mode output ratings:
Voltage: ±1.4 V to ±212 V / ±2.8 V to ±424 V
Voltage setting range: -215.0 V to +215.5 V / -431.0 V to +431.0 V
Voltage setting accuracy: ±(0.05 % of set + 0.05/0.1 V)
Max. current: 42 A, 21 A
Power capacity: 4.2 kW
- Output Voltage Stability:
Line regulation: Within ±0.1 %
Load regulation: Within ±0.1 V, within ±0.2 V
Ripple noise: ≤ 0.25 Vrms
- Interfaces: RS232C, USB (Option) , LAN (Option) , GPIB (Option)
- Measurement: A, V, W
- Protection Functions: Output overvoltage protection AC/AC+DC/ DC mode, Output undervoltage protection AC/AC+DC/ DC mode, Frequency Upper/Lower limit,...
- Accessories: Power cord, Setup guide, Quick Reference, Safety information, CD-ROM
(User's manual)
