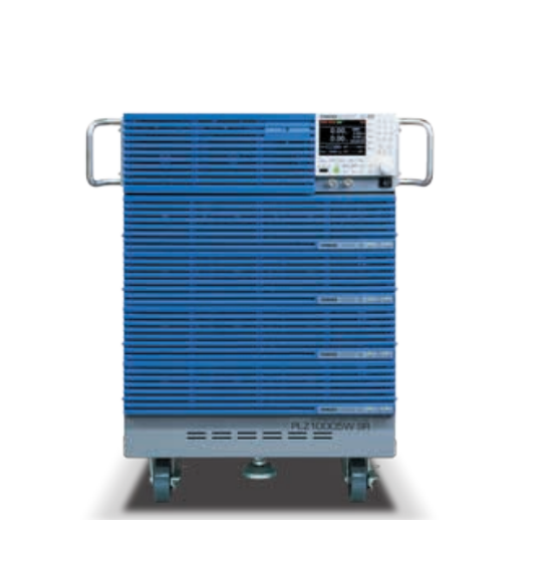

KIKUSUI PLZ10005W SR 多功能直流电子负载装置 (Smart rack, 10.8 kW)

Rating:

Operating voltage (V): 1 to 150

Current (A): 2160

Power (W): 10800

Constant current mode (CC)

Operating range:

H range (A): 0 to 2268

M range (A): 0 to 226.8

L range (A): 0 to 22.68

Ripple: 216 mArms

Constant voltage mode (CV)

Operating range:

H range (V): 0 to 157.50

L range (V): 0 to 15.750

Resolution:

H range (mV): 5

L range (mV): 0.5

Constant resistance mode (CR)

Operating range:

H range (S): 2268 to 0

M range (S): 226.8 to 0

L range (S): 22.68 to 0

Constant power mode (CP)

H range (W): 0 to 11340

M range (W): 0 to 1134

L range (W): 0 to 113.4

Interfaces: GPIB (Option), RS232C, USB, LAN

Weight (kg):  ≈ 120

Power consumption (VA): ≈ 465
