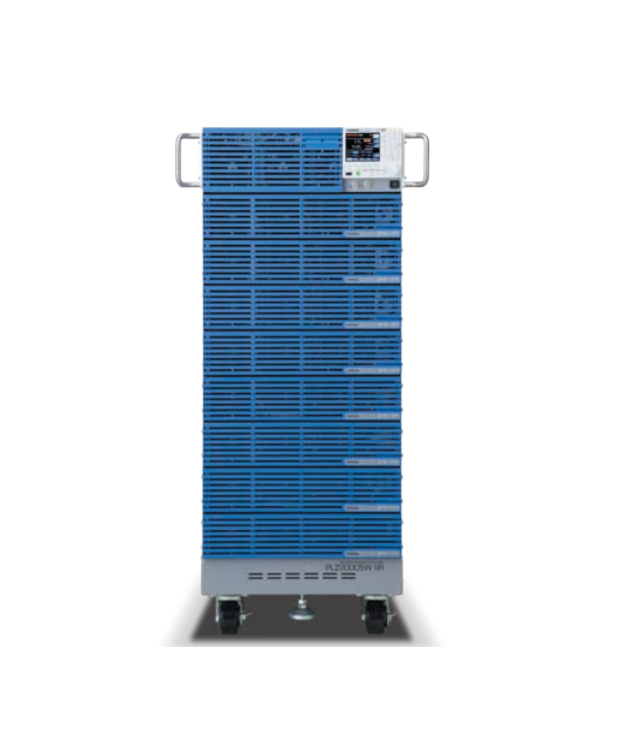

KIKUSUI PLZ20005W SR 多功能直流电子负载装置 (Smart rack, 20.4 kW)

Rating:

Operating voltage (V): 1 to 150

Current (A): 2160

Power (W): 20400

Constant current mode (CC)

Operating range:

H range (A): 0 to 4284

M range (A): 0 to 428.4

L range (A): 0 to 42.84

Ripple: 408 mArms

Constant voltage mode (CV)

Operating range:

H range (V): 0 to 157.50

L range (V): 0 to 15.750

Resolution:

H range (mV): 5

L range (mV): 0.5

Constant resistance mode (CR)

Operating range:

H range (S): 4284 to 0

M range (S): 428.4  to 0

L range (S): 42.84 to 0

Constant power mode (CP)

H range (W): 0 to 21420

M range (W): 0 to 2142

L range (W): 0 to 214.2

Interfaces: GPIB (Option), RS232C, USB, LAN

Weight (kg):  ≈ 200

Power consumption (VA): ≈ 855
