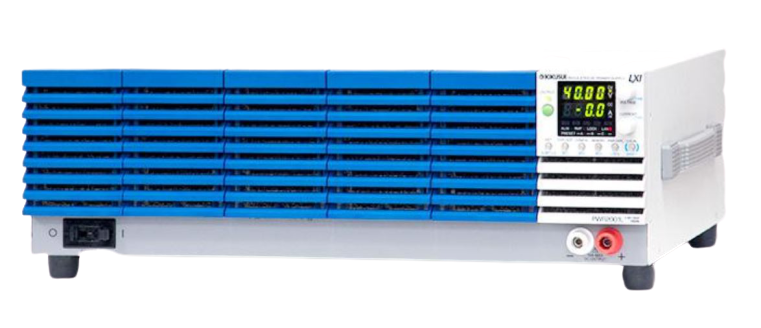

KIKUSUI PWR2001ML 袖珍型可调直流电源 (80V/ 100A)

Input voltage: 100 VAC ~ 240 VAC, 50 Hz ~ 60 Hz, single phase

Output power: 2000 W

Output voltage:  80 V

Output current: 100 A

Voltage:

Settable: max 84 V

Setting accuracy:  ± (0.05 % of set + 0.05 % of rating)

Ripple noise: 70 mV p-p

Current:

Settable: max 105A

Setting accuracy:  ± (0.5 % of set + 0.1 % of rating)

Ripple noise: 200 mA

Display Functions:

+ Voltage: max 99.99, accuracy:  ± (0.2 % of reading + 5 digit)

+ Curent: max 999.9, accuracy: ± (0.5 % of reading + 8 digit)

+ Power: max 9999

Maximum internal resistance that can be set: 0.800Ω

Protection functions: Overvoltage, Overcurrent, Overheat, Power limit, shutdown

Other funtions: Sequence, Output-on/off delay, Soft start/stop, CONFIG shortcut, Synchronized operation

Control functions:  VPGM, IPGM, OUTPUT ON/OFF, SHUT DOWN, ALM CLR

Interface: RS232C, USB & LAN

Accessories: Chasis connection short bar, output terminal M4 screws (2 pcs.), output terminal cover, packing lisst, safety information, CD-ROM, Quick Reference, input terminal cover, ferrite core set
