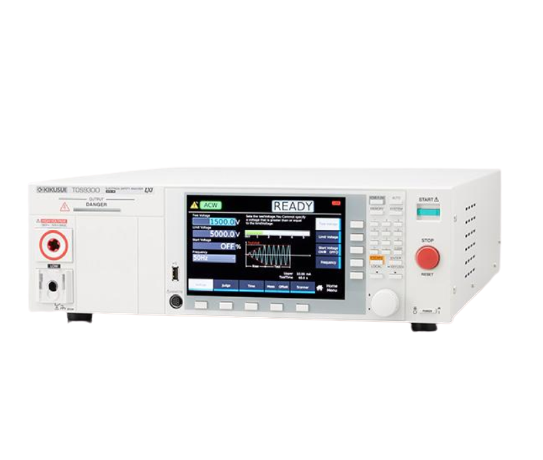

KIKUSUI TOS9300 电气安全多功能分析仪 (5kV / 100mA)

1. AC Withstanding Voltage (AC Hipot)

Output range: 0.05 kV ~ 5.00 kV; 1V; ±(1.2 % of setting + 20 V) (at no load)

Max. rated load: 500 VA(5 kV / 100 mA)

Max. rated current: 100 mA (when the output voltage is 0.2 kV or higher)

Transformer rating: 500 VA

Output voltage waveform: Sine

- Measurement: V, A

- Other function: Judgment, Timer

2. Insulation resistance test section

- Negative polarity:

Output voltage range: -25 V to -1000 V; 1 V; ±(1.2 % of setting + 2 V)

Max. rated load: 1 W (-1000 V/1 mA)

Max. rated current: 1 mA

- Measurement: V, R

- Other function: Judgment, Timer

3. General

Interface: REMOTE, SIGNAL I/O, SCANNER, USB, Remote control

Power supply

Nominal voltage range(allowable voltage range): 100 Vac to 120 V, 200 V to 240 V (90 Vac to 132 V, 170 V to 250 V)

Power consumption:

No load(READY state) 100 VA or less

Rated load 800 VA max.

Allowable frequency range: 47 Hz ~ 63 Hz

Weight: Approx 17 kg (37.5 lb.)

Accessories:

Power cord : 1pc.

High test lead (TL31-TOS) : 1set

SIGNAL I/O plug (1 set)

High-voltage warning sticker (1 pc.)

Setup Guide (1 copy)

CD-ROM (1 disc)

Safety Information (1 copy)
