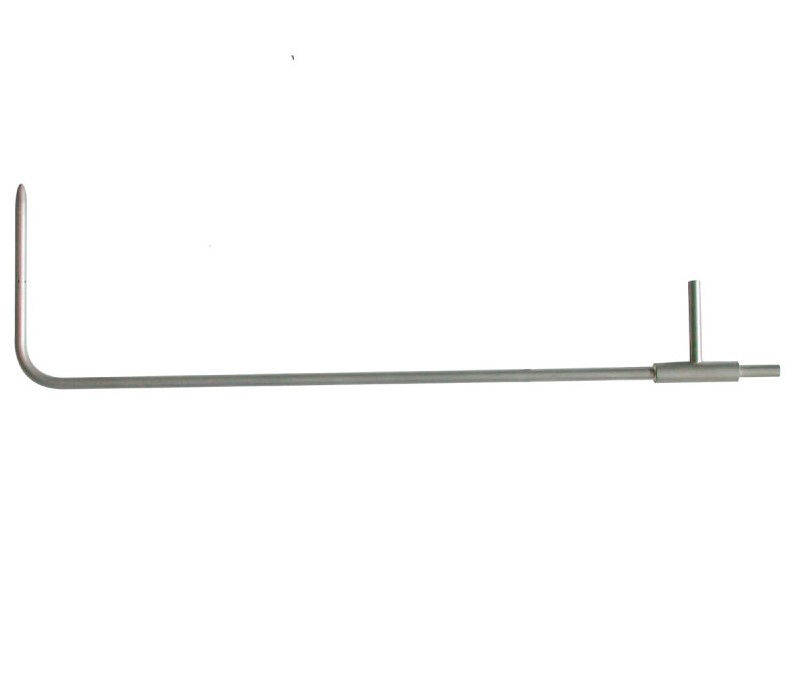

Sauermann TPL-14-2500 皮托管L型（Ø14毫米/ 2500毫米）
制造商: Sauermann Model: TPL-14-2500 保障: 12 Month - 联系
Diameter: Ø14 mm
Length: 2500 mm
Coefficient 1.0015 ±0.01
Material: Inox 316 L
Measuring range: 3 to 85 m/s
Operating temperature: From 0 to 600°C in standard and up to 1000°C in option
Static pressure: 2 bar maximum in static Hereafter on request
Global accuracy of the measurement system: Better than 1% for an alignment in relation to the flow axis of the fluid of ±10°C
Standards: AFNOR NFX10-112. Annex of the 77.09.14 This standard is in accordance with the international standard ISO 3966.
