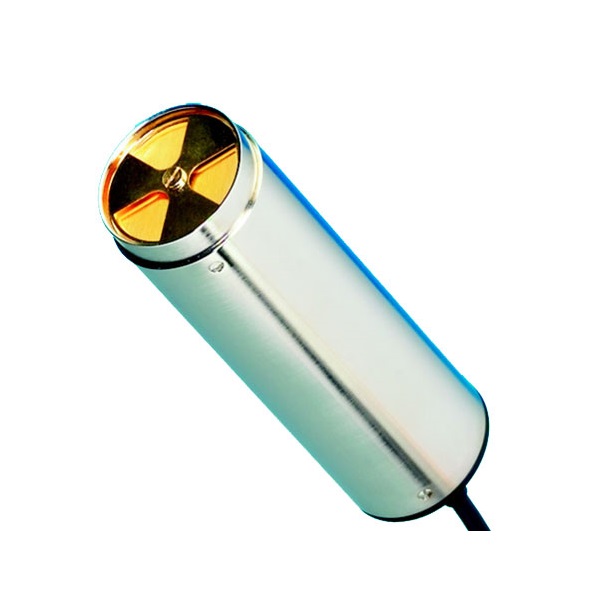

KLEINWACHTER EFM 113B Electro Field Meter ( 200kV/m)

Dimensions: 120mm x 40mm (l x d)

Measuring range: 5kV/m, 20kV/m, 50kV/m and 200kV/m

Metering precision: 5% in a homogenous field

Calibration: In the homogenous field of a plate capacitor plate size 200mm x 200mm, plate distance 25mm modulator system mounted centered in the plate

Power supply: 9-15V DC / 80mA

Interface: Analog current output �1mA

Mounting: Alumonium clamping yoke with photo thread (optional)

Operating time: In one shift operation min. 2 years

Scope of delivery

Connection cable


Declaration of calibration
