KLEINWACHTER ZPE 050 长柄型两点电极

Name: KLEINWACHTER ZPE 050 长柄型两点电极
Brand: KLEINWACHTER
SKU: KLEINWACHTERZPE 050
Price: 17617496 VND
Availability: OutOfStock

Dimension: Diameter: 16mm, Full length: 210mm

konductive rubber: Diameterr: 2mm, Shore hardness 60

Distance: 6,4mm

Connecting: PTFE isolated cable with banana plugs 4mm

Isolation: PTFE R>1015Ω (U=100V)

Contact resitance: < 1kΩ (measured on a metall plate U=10V)

Detail

Datasheet

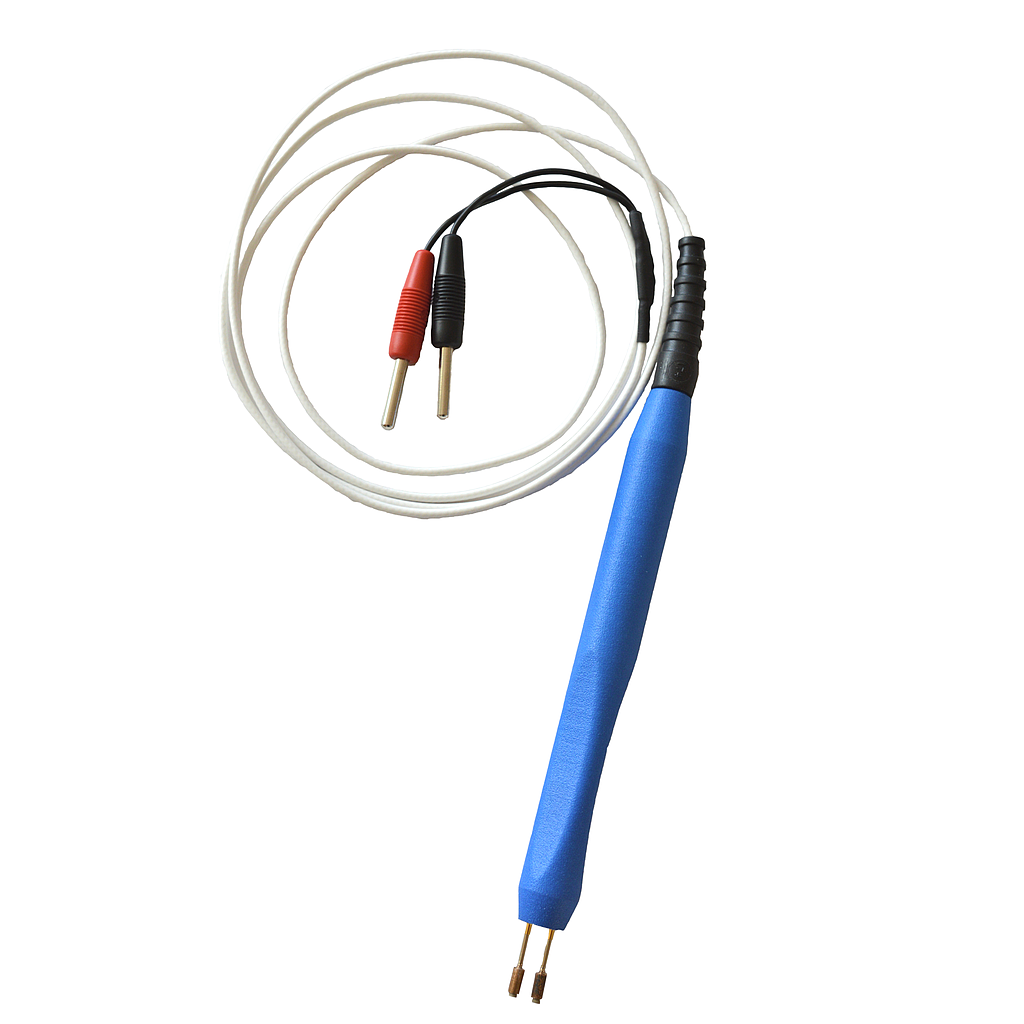

Two point - Electrode to measure the surface resitor on smal areas.

Ergonomic handle with 2 small spring electrodes and conductive rubber.

Based on the following standards :

IEC 61340-2-3 und DIN IEC 1340-4-10

Price (exclude tax)	17,617,496 VND
Price (include tax)	19,379,246 VND
