Warrenty: 12 months
▪ Power : AC 220V, 50 ~ 60 Hz, 3 Phases
▪ Rotation : Fixed rotation by belt drive Xoay cố định xoay bằng truyền động đai
▪ Cutting Method : Rapid product cutting by rack and pinion
▪ Safety Device : Motor stop when opening / closing the cover
▪ Vise : Cam Type Quick Vise, claming width 70mm
▪ Option Specification : Y-axis automatic transfer, automatic discharge of cut chip
▪ Capacity : 3.75 ~ 5.6 Kw
It is to cut fine parts of various specimens to test microscopic hardness, micro hardness test. Tests are carried out to remove heat effect of the material and to obtain a clean cut surface.

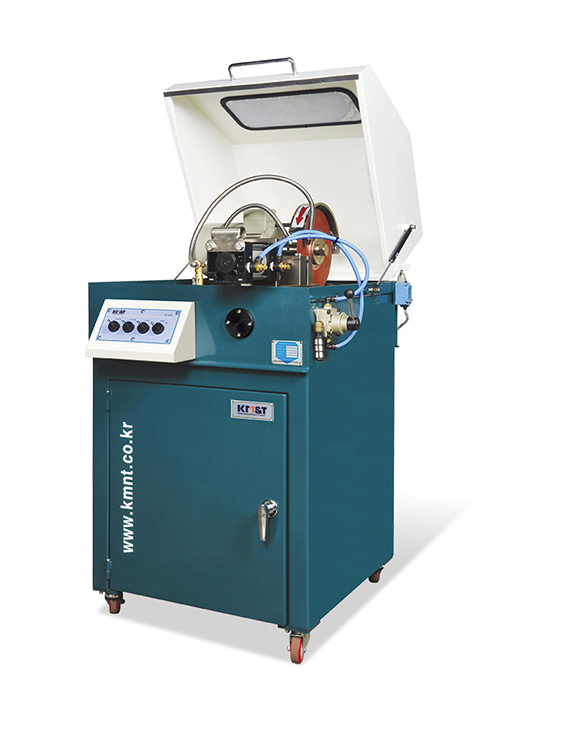

It is automatic precise specimen cutting machine; It is suitable for automatic cutting in lengthwise direction for medium and heavy objects. It is used to cut various materials.
