Application: All products that require abrasion testing, such as plastics, rubber, paints, car wheels and partsPower : AC 220V, 50/60Hz, 1phase
Size : IN : 360(W) × 400(D) × 400(H) mm
Weight : 20kg
Motor rotation speed Control : 0 ~ 70 RPM
Timer / Counter
Test Load : 250g, 500g, 1,000g

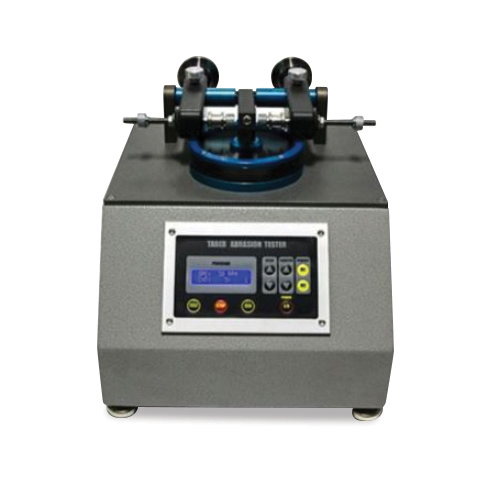

The tester is used to measure wear of plastics, rubber, paints, fancy plywood, leather, film paper, etc.
The tester is to measure the wear of plastics, rubber, paints, fancy plywood, leather, film, paper, etc.
For the test, measure the weight of the test specimen, then fix the specimen horizontally on a rotating plate.
Then, tests are carried out with two rubber abrasive wheels or rubber disc with abrasive paper wrapped.
After the completion of the test, measure the number of revolutions and the weight tof the test specimen
to obtain the wear and wear degree.
