Drive : Servo Motor Drvie System
Torsional Test : 60 times / min
Bending Test : 60 times / min
Load : 500N
Number of repetitions : 50,000 times
Control System : Computer Driven System
Size : 2,000(W) X 1,200(D) X 1,900(H) mm

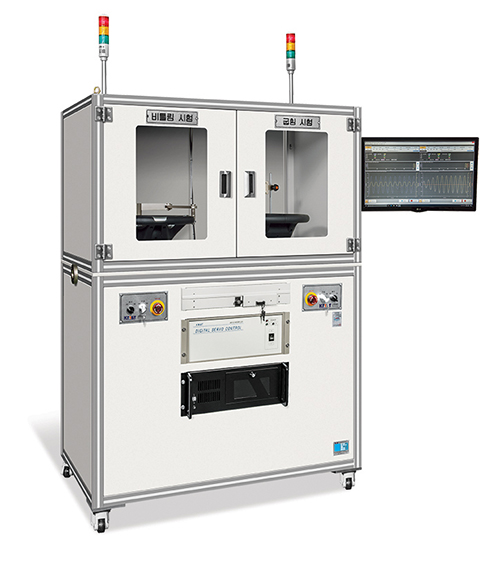

The tester is to evaluate the fatigue of the stimulus by giving fatigue to the product
or specimen that is complied with the reliability test requirments. Designed and manufactured
to meet the requirements of the customer. It is an indispensable device for evaluating the
durability and testing the limits of the components of the automobile.
This design is initiated by the customer's request.
Torsion Test and Endurance Test for car wheel simultaneously or individiually
