Drive : Electric Cylinder + Servo
Durability Speed : 0.2 ~ 1Hz
Load : 500N
Test Distance : 0 ~ 50 mm
Control Method : Load and displacement
Chamber Temperature Range : - 40 ~ 120℃
Temper Controller : Digital touch screen type
Size : 2,000(W) X 2,900(D) X 1,500(H) mm
The tester is to evaluate the fatigue of the stimulus by giving fatigue to the product
or specimen that is complied with the reliability test requirments. Designed and manufactured
to meet the requirements of the customer. It is an indispensable device for evaluating the
durability and testing the limits of the components of the automobile.
This design is initiated by the customer's request.

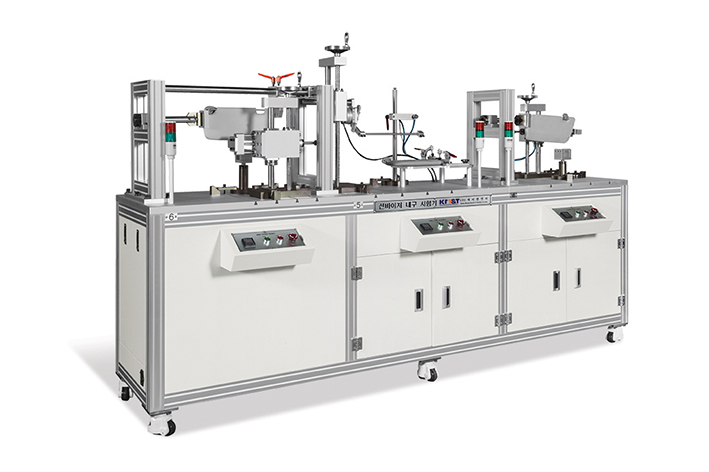

▪ Automotive Sunvisor Test available
▪ Test Axis : 6Ch
▪ Retention, Arm, Blade, Extension, Mirror Slide, Mirror Cover, LH / RH
