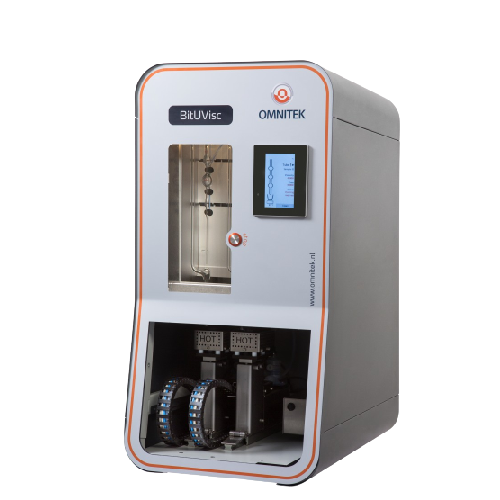

For the determination of kinematic viscosity of liquid asphalts, road oils, and distillation residues of liquid asphalts at high temperatures.
Specifications
Conforms to the specifications of: ASTM D445, D446, D2170; AASHTO T201; IP 71; ISO 3104, ISO 3105; DIN 51562; FTM 791-305; NF T 60-100
Measuring range: Up to 120.000 mm2/s, up to 150°C
Temperature range: 15-150°C (59-302°F)
Temperature stability: 15-100°C ±0.01°C; Up to 150°C ±0.03°C (*For temperatures around ambient, an external chiller is required)
Timer accuracy: 0.001 s
Sample volume: 12 mL
Sample introduction: Vacuum
Solvent consumption: 20-30 mL per cycle, sample dependent
Sample throughput: Up to 4 measurements per hour
** Measurements per hour depends on the viscosity, tube, temperature and solvents chosen
Viscometer type: Ubbelohde based
Sensor type: Thermal
Communication: RS232
PC Control: Multiple instruments can be controlled with one PC
Data export: USB
Electrical requirements: 115V 60Hz; 230V 50Hz
Dimensions: WxDxH,in.(cm): 15x24.4x30.7 (38x62x78)
Net weight: 119.05 lbs (54kg)
Included accessories
Single Position Autosampler with tube preheater
Duplo Viscometer Tube(s)
Bath Oil
Dual Solvent Injection
Reference Standards
Advanced PC Software
Additional accessories
Pedestal Base
Cooling Circulator (for measurement around room temperature)
Compressor
PC for Instrument Control
Glass Sample Cups (50/pack)
Duplo Viscometer Tubes
Spare Parts Kit
