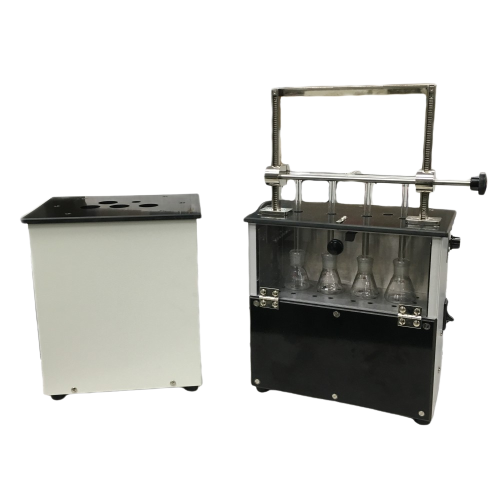

Koehler K17690 油溶剂萃取物含量测定仪 (220-240V 50/60Hz)

Determines oil content or solvent extractables content in petroleum waxes in accordance with ASTM specifications.

Specifications

- Conforms to the specifications of: ASTM D721, D3235; IP 158; ISO 2908; DIN 51571, 51572; FTM 791-5431

Electrical requirements: 220-240V 50/60Hz, Single Phase, 0.4A

Dimensions

- lxwxh,in.(cm)

+ Cooling bath: 8x6x9 (20x15x23)

+ Evaporation cabinet: 9x5x16 (23x13x41)

- Net weight: 18 lbs (8.2kg)

Shipping information

- Shipping weight: 22 lbs (10kg)

- Dimensions: 24x20x18 in (61.0x50.8x45.7cm)

Included accessories

- Weighing Bottles, 15mL (4)

- Filter Stick Assembly (K17630)

- Air Pressure Regulator (K17640)

Additional accessories

- K17605 Mechanically Refrigerated Cooling Bath, 115V 60Hz, Ambient to -35°C

- K17695 Mechanically Refrigerated Cooling Bath, 220-240V 50/60Hz, Ambient to -35°C

- 332-004-009 Test Tube, 25x170mm

- 250-000-71F ASTM 71 F Thermometer - Range: –35 to +70°F

Datasheet
