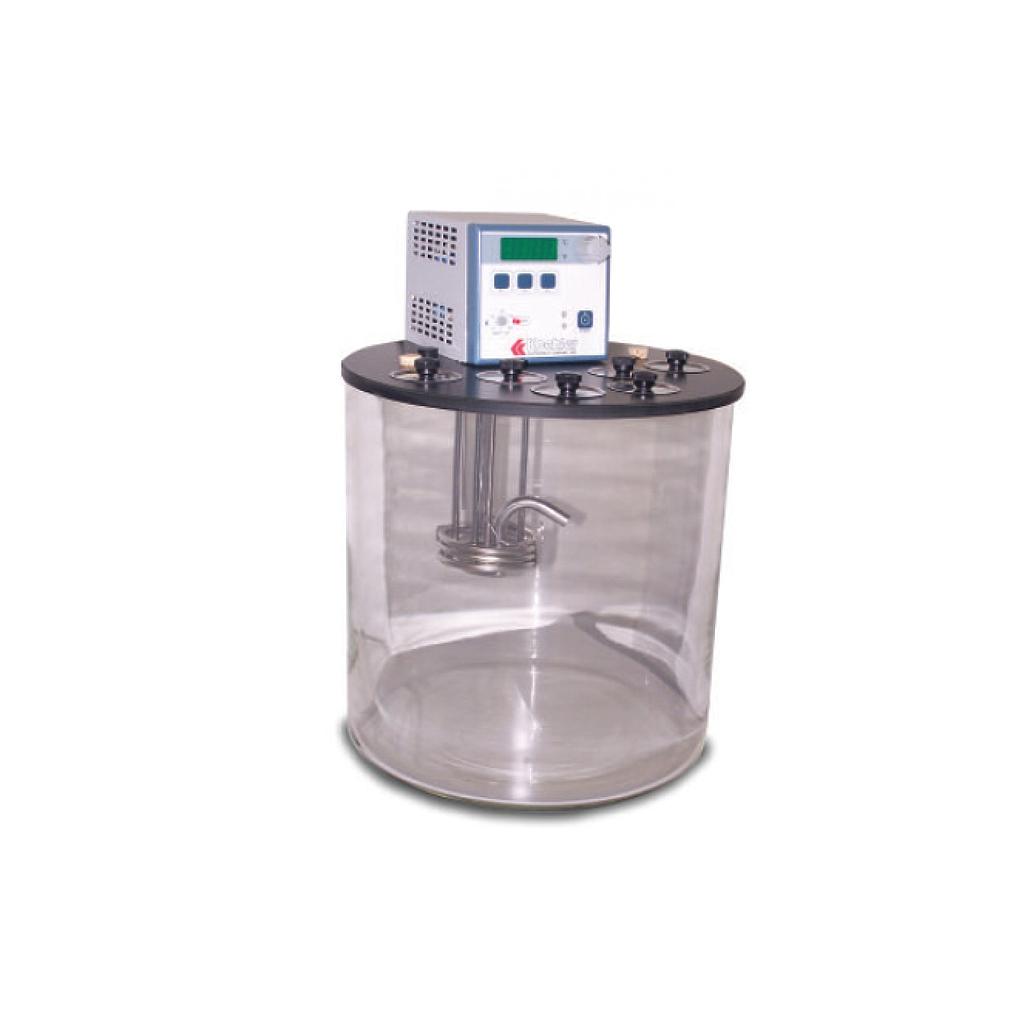

Koehler KV1000 运动粘度测试浴 (22L, 12")

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.

Specifications

Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Capacity: Six (6) glass capillary viscometers

Bath medium: water or white technical oil

Bath depth: 12" (30.5 cm)

Bath capacity: 5.8 gal (22 L)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 5.3A

Dimensions:

Diaxh,in.(cm): 13 ½ x 20 (34.6x50.8)

Net weight: 28 lbs (12.7 kg)

Shipping Information

Shipping weight: 34 lbs (15.4kg)

Dimensions: 28x24x20 in. (71.12x60.96x50.8cm)
