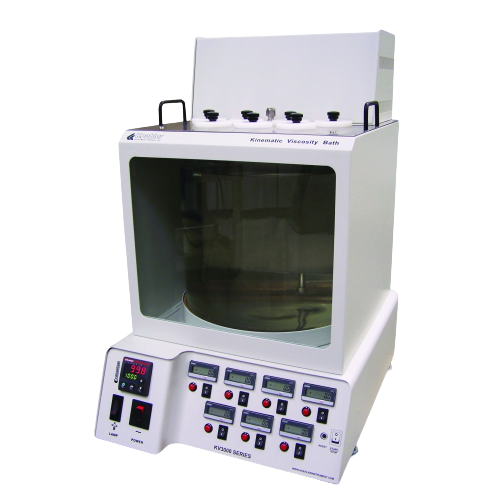

Koehler HKV3000 集成数字定时的高温运动粘度浴 (22L, 环境温度 - 150°C)

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.

Specifications:

Conforms to the specifications of:  ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Temperature control range: Ambient to 150°C (302°F); sub-ambient to 10°C with external cooling

Display: 0.1°C / 0.1°F resolution, calibrate to 0.01°C / 0.01°F

Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range

Timing: Integrated timing function within Touch Screen Control Panel  displayed to 0.1 seconds and accurate within 0.01%

Communication: RS232, RS485 port

Viscometer ports: Seven round 2" (51mm) ports

Bath medium: Water or suitable heat transfer fluid

Bath capacity: 12": 5.8 gal (22L)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 7.3A

Dimensions: LxWxH,in.(cm): 20 ¼ x 15 ¼ x 24 ½ (51x39x62)

Net weight: 84 lbs (38.1kg)

Shipping Information

Shipping weight: 106 lbs (48.1 kg)

Dimensions: 28x24x33 in. (71.12x60.96x83.82cm)
