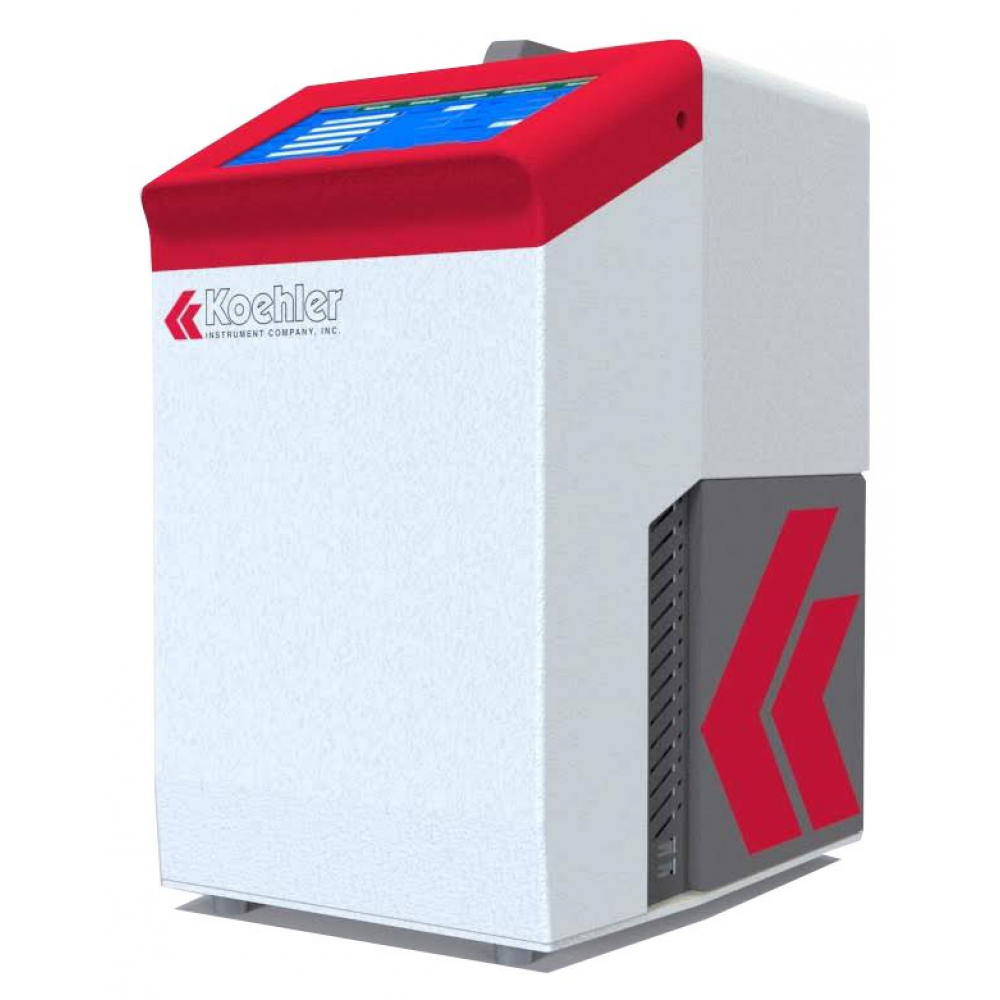

Koehler K24870 全自动微型蒸气压分析仪 (0-1000kPa)

K24870 for vapor pressure determination

Specifications

Conforms to the specifications of: ASTM D5191, D6378

Excellent correlation to: ASTM D323, D4953; EN 13016-1; IP 394; JIS K2258-2; SH/T 0794, SH/T 0769; GB/T 8017I; SN/T 2932

Temperature range: 0 C to 120 °C (30 F to 250 °F)

Temperature Stability: ± 0.1 °C

Pressure range: 0 kPa to 1000 kPa (0 psi to 145 psi)

Pressure resolution: 0.01 kPa

Sample volume: 1 mL (2.5 mL rinse - 3x per cycle)

Vapor/Liquid ratio: 0.02:1 to 4:1

Interfaces: RS232, USB, Ethernet

Electrical requirements: 100-240 VAC, 50/60Hz, 150W

Dimensions

- wxdxh,in.(cm): 8.9x11.5x15.4 (22.5x29x39)

- Net weight: 26.5 lbs (12kg)

Detail


Datasheet
