Koehler K27580 带触摸屏的自动石油折光仪 (0~95% solids)

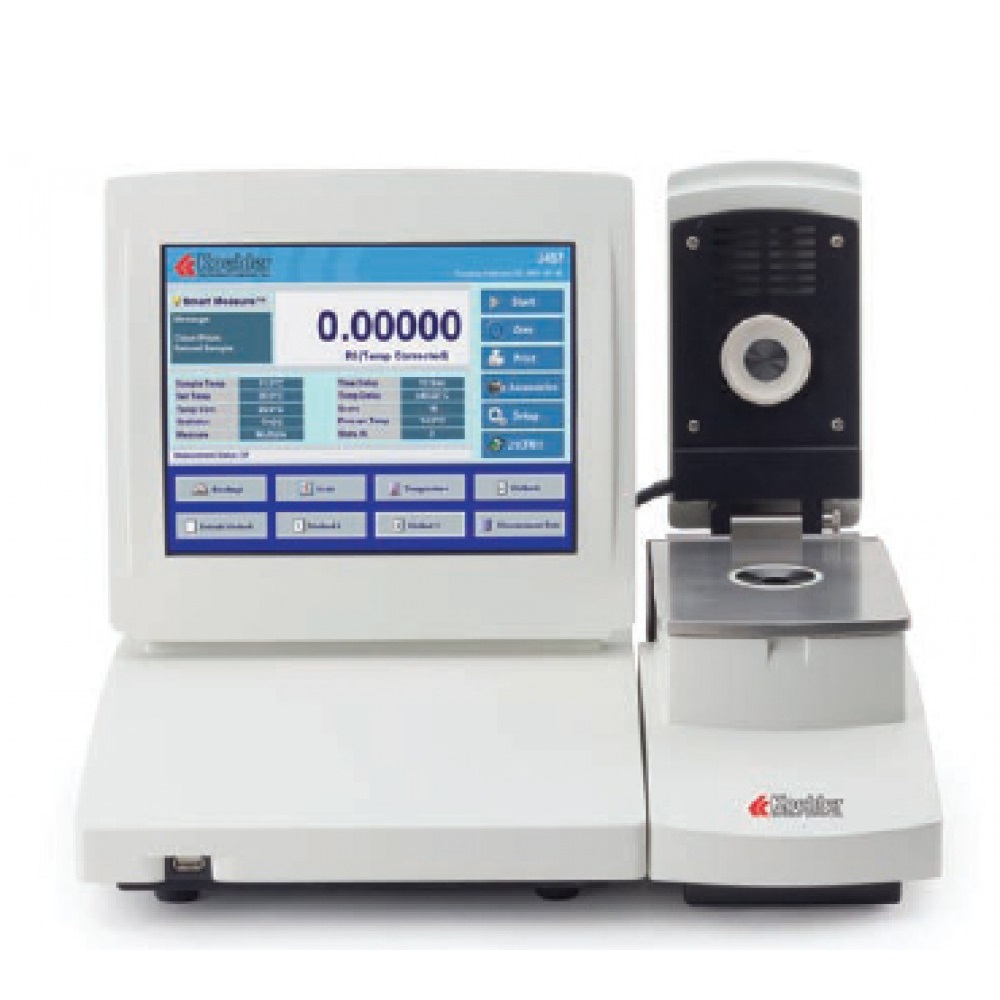

The Koehler Automatic Refractometer uses precision optics and superior image analysis to extend the repeatability and accuracy of refractive index measurements for petroleum products.

Specifications

- Conforms to the Specifications of: ASTM D1218, D1747, D5006, D5775

- Measurement scales: Refractive Index (RI), BRIX (% sucrose), Temperature Corrected RI, Temperature Corrected BRIX, Ten User-Programmable Scales

- Illumination: 589nm light emitting diode with interference filter (estimated life: 100,000 hrs)

- Range: Dissolved Solids: 0 to 95% solids

- Refractive Index: 1.26000 to 1.72000nD (nD - Sodium D-Line Refractive Index)

- Readability: 0.01% Solids 0.00001nD

Electrical requirements: 110-240V 50/60Hz

Dimensions

- lxwxh,in.(cm): 17x12x 13 (44x31x33cm)

- Net weight: 23 lbs (10.5kg)

Additional accessories

- K27505 Calibration Fluid

- Certificate of NIST Traceability Included
