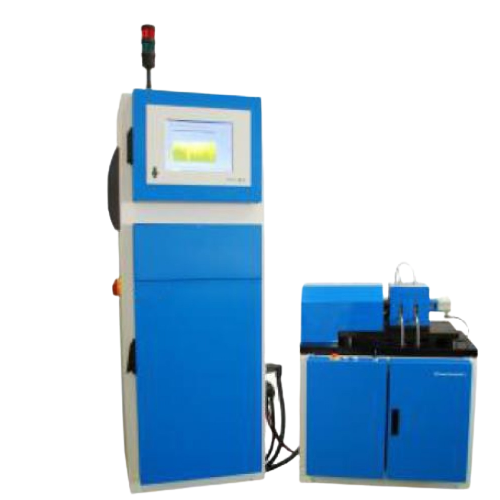

Koehler K94801 润滑油测试仪 RHF 1 (75.000 rpm)
制造商: Koehler Model: K94801 保障: 12 Month - 报价要求
- 联系
The purpose of the test is to measure the ability of a grease to lubricate at various high speeds, temperatures and axial loads.
Specifications
- Spindle speed: 75.000 RPM
- Test temperature: Up to 230°C
- Axial test load: 50 to 1 100 N/bearing
- Drive: high-speed spindle
- Operating system: Windows 7
- Evaluation system: Industrial panel PC
Electrical requirements: 400V 50Hz 30 kVA 3 Phase
- Valve control voltage: 24 V
- Pneumatic system: Air Pressure 6 bar (87 psi) at least, clean, dry air
Dimensions
- wxdxh,in.(cm): 65.1 x 28.3 x 68.1 (165x72x173)
- Net weight: 1,934 lbs (895kg)
Additional accessories
- K94800-1 Test Setup for Bearing Type 6204 For 60,000 RPM Model
- K94800-2 Test Setup for Bearing Type 7005 For 60,000 RPM Model
- K94801-1 Test Setup for Bearing Type 6204 For 75,000 RPM Model
- K94801-2 Test Setup for Bearing Type 7005 For 75,000 RPM Model
- K94800-3 Test Bearing 6204
- K94800-4 Test Bearing 7005
- K94800-5 Shield Pressing Tool for Type 6204 Test Bearing
