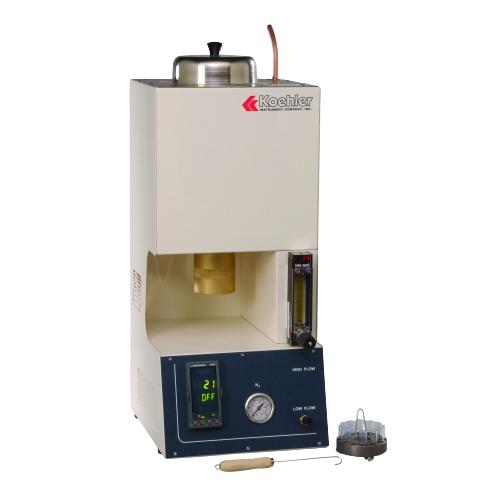

Koehler K41100 Micro Carbon Residue Tester (230V 50/60Hz, 1500W)

Determines the amount of carbon residue formed after evaporation and pyrolysis of petroleum materials under certain conditions and is intended to provide some indication of the relative coke forming tendency of such materials.

Specifications

- Conforms to the specifications of: ASTM D4530; ISO 10370; IP 398; DIN 51551

Electrical requirements: 230V 50/60Hz, 1500W

Dimensions

- LxWxH,in.(cm): 9.8x11.8x23.6 (25x30x60)

- Net weight: 43 lbs (19.5kg)

Shipping information

- Shipping weight: 61 lbs (27.7 kg)

- Dimensions: 18x18x37 in. (45.7x45.7x94.0 cm)

Included accessories

- Ambient temperature: 15 to 30°C

- Ambient relative humidity: Max 85% (noncondensing)

- Furnace temperature range: from ambient temperature to 550°C

- Temperature measurement resolution: 1°C

- Furnace cooling: by compressed air injection

- Maximum load of samples: 12 small vials / 6 large vials

- Power: 1500W, 250x300x600mm (±15kg)

Additional accessories

- K41000-2 2ml borosilicate glass sample vial  for micro conradson test

- K41000-3 16ml borosilicate glass sample for micro conradson test

- K41100-3 16ml vials (pack of 144) for single use

- K41100-4 2ml vials (pack of 100) for single use
