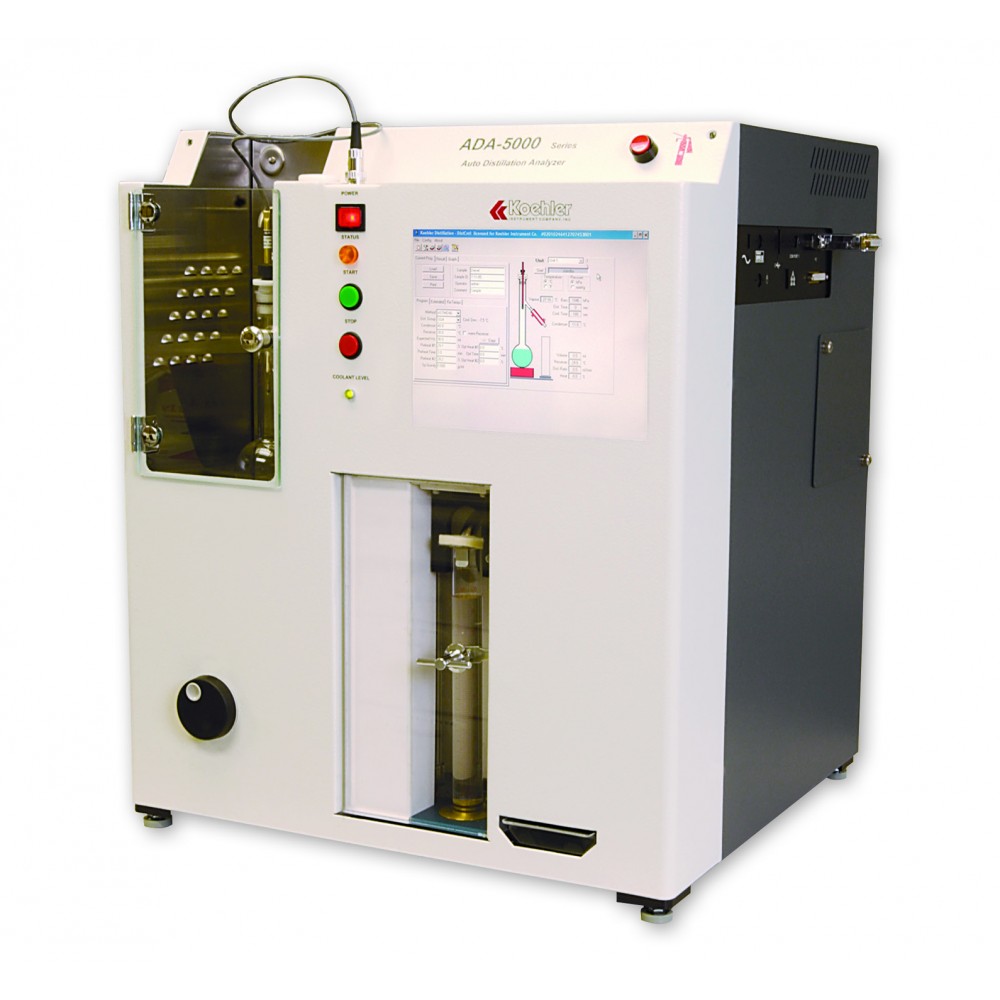

Koehler K45704-TS 带触摸屏和集成pc的自动蒸馏分析仪 (0-450°C, ±0.1°C)

The Koehler Automatic Distillation Analyzer is designed to perform optimal distillation analyses of gasolines, fuels, oils, solvents, aromatics, napthas, kerosenes, hydrocarbons, and other volatile products to ensure conformity to rigid quality control standards.

Specifications

Conforms to the specifications of: ASTM D86, D285, D850, D1078, D4737; D189 Section 10; DIN 51751; ISO 3405; IP 123; IP 195; JIS K0066; JIS K2254; NF M 07-002

Temperature distillation range: 0 to 450°C (±0.1°C accuracy)

Condenser: -5 to 60°C (±0.1°C accuracy); closed loop system

Receiver chamber: 0 to 60°C (±0.1°C accuracy)

Distillation parameters

Distillation rate: 2 to 15mL/min in 0.1mL increments, user selectable

Receiver volume: 0 to 100mL (±0.01mL accuracy)

Barometic pressure: range 550 to 900 mm Hg (±1 mm Hg accuracy)

Environment: Operates at 0 to 25°C (113°F)

Electrical requirements: 230V 50/60Hz 10A

Dimensions: LxWxH,in.(cm): 21x21.5x27.75 (53.3x54.6x70.5)

Net weight: 230 lbs (91kg)

Shipping Information

- Shipping Weight: 260 lbs (95kg)

- Dimensions: 28 Cu. ft.

Details

[%youtube id="h_PNUME1W4Y" width="100%" center="1"%]

Included accessories

Distillation Flask, 125mL with Markings

Ceran Plate, 25mm dia. hole

Ceran Plate, 38mm dia. hole

Ceran Plate, 50mm dia. hole

3 Point Calibrated PT100 Thermometer with Cable and Plug

Special Graduated Receiver Cylinder with Base

Wiper for Condenser Tube

Dropping Plate

Teflon Plug for 125mL Flask

Silicone Plug for Flask Side Arm

Dry Point Detection Board

Windows®-based Automatic Distillation Software

Additional accessories

K45634 Distillation Flask, 125mL with Markings

K45635 PTFE Centering Stopper for 125mL Flask

K45655 Ceran Plate, 32mm dia. hole

K45656 Ceran Plate, 38mm dia. hole

K45657 Ceran Plate, 50mm dia. hole

K45656-A Ceran Plate, 25mm dia. hole

K45650 PT100 Thermometer with Cable and Plug

K45651-E Special Graduated Receiver Cylinder (with base)

K45651-B Special Graduated Receiver Cylinder (without base)

K45601-03014 Condenser Tube Cleaning Assembly

K45668 Dropping Plate

K45654-A Flask 200mL with Silicon Plug

K45652-C Silicone Plug

K45654 Automatic Dry Point Detection Kit for D850 and D1078
